IRFB3077PBF

High-power N-channel MOSFET transistors in TO-220AB package

Manufacturer: ['ir', 'infineon']

series introduction

# IRFB3077PBF Product Series Introduction

## 1. Overview
The IRFB3077PBF is a high - performance power MOSFET product series developed by Infineon Technologies. These MOSFETs are designed to meet the demanding requirements of various power electronics applications, offering excellent electrical characteristics and reliability. With their advanced technology and optimized design, they play a crucial role in power management, motor control, and other high - power circuits.

## 2. Key Features

### 2.1 Low On - Resistance (RDS(on))
One of the most significant features of the IRFB3077PBF series is its extremely low on - resistance. This low RDS(on) value results in reduced power losses during conduction. For example, in high - current applications, a lower on - resistance means less heat generation, which not only improves the efficiency of the circuit but also extends the lifespan of the components. This feature is especially beneficial in power supplies and motor control circuits where minimizing power dissipation is essential.

### 2.2 High Current - Carrying Capacity
These MOSFETs are capable of handling high continuous drain currents. The IRFB3077PBF can support relatively large currents, making it suitable for applications that require high - power delivery. In motor control applications, for instance, the ability to handle high currents allows for the efficient operation of motors with different power ratings, enabling smooth acceleration and deceleration.

### 2.3 Fast Switching Speed
The IRFB3077PBF series offers fast switching characteristics. Fast switching speeds are crucial in applications such as switching power supplies and inverters. A fast - switching MOSFET can reduce the switching losses, which occur during the transition between the on and off states. This leads to higher overall efficiency of the power conversion system and enables the design of high - frequency circuits, which can be more compact and lightweight.

### 2.4 Avalanche Energy Rating
The MOSFETs in this series have a high avalanche energy rating. This means they can withstand high - energy transient events without being damaged. In real - world applications, electrical systems are often exposed to voltage spikes and transient over - voltages. The high avalanche energy rating of the IRFB3077PBF provides a level of protection against these potentially harmful events, enhancing the reliability of the entire circuit.

### 2.5 Low Gate Charge
The low gate charge of the IRFB3077PBF reduces the power required to drive the MOSFET. This is important in applications where the gate drive circuit needs to be efficient. A lower gate charge allows for faster switching times and reduces the power consumption of the gate drive, which is beneficial for battery - powered devices and other energy - sensitive applications.

## 3. Electrical Specifications

### 3.1 Drain - Source Voltage (VDS)
The IRFB3077PBF typically has a specified drain - source voltage rating. This rating indicates the maximum voltage that can be applied between the drain and the source terminals without causing breakdown. A higher VDS rating makes the MOSFET suitable for high - voltage applications, such as in some industrial power supplies and high - voltage motor control systems.

### 3.2 Continuous Drain Current (ID)
As mentioned earlier, the series can handle a significant continuous drain current. The ID rating is an important parameter for determining the power - handling capacity of the MOSFET. It helps designers select the appropriate MOSFET for their specific application based on the expected current requirements.

### 3.3 Gate - Source Voltage (VGS)
The gate - source voltage is the voltage applied between the gate and the source terminals to control the conduction of the MOSFET. The IRFB3077PBF has a defined range of VGS values within which it operates optimally. Understanding this

Images for reference

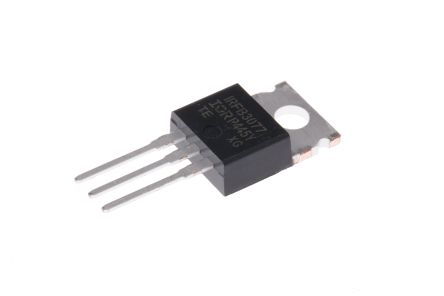

TO-220-3, TO-220AB
