IPA60R160C6

High-power N-channel MOSFETs in TO220FP package for robust electronic applications

Manufacturer: ['infineon', 'iscsemi']

series introduction

# Introduction to the IPA60R160C6 Product Series

## 1. Overview
The IPA60R160C6 product series is a remarkable line of power semiconductor devices that play a crucial role in a wide range of electrical and electronic applications. These devices are designed to handle high - power tasks efficiently, offering a combination of advanced technology, high performance, and reliability.

## 2. Key Features

### 2.1 Low On - Resistance
One of the standout features of the IPA60R160C6 series is its extremely low on - resistance. With a low on - resistance value, the devices can minimize power losses during conduction. This is particularly important in high - power applications where even small power losses can lead to significant heat generation and reduced overall efficiency. For example, in power supplies, lower on - resistance means less energy is wasted as heat, resulting in higher energy conversion efficiency and potentially longer component lifetimes.

### 2.2 High Voltage Rating
The series is rated for high voltages, typically up to 600V. This high - voltage capability makes it suitable for applications that require handling large electrical potentials, such as industrial motor drives, solar inverters, and high - power lighting systems. The ability to withstand high voltages ensures the devices can operate safely and reliably in demanding electrical environments.

### 2.3 Fast Switching Speed
The IPA60R160C6 devices offer fast switching speeds. Fast switching is essential in applications like switching power supplies and motor control, where rapid changes in current and voltage are required. A fast - switching device can reduce switching losses, improve the overall efficiency of the circuit, and enable higher - frequency operation. Higher - frequency operation, in turn, allows for the use of smaller passive components, such as inductors and capacitors, leading to more compact and cost - effective designs.

### 2.4 Ruggedness and Reliability
These devices are built to be rugged and reliable. They are designed to withstand various electrical stresses, including over - voltage, over - current, and thermal cycling. This ruggedness makes them suitable for use in harsh industrial environments, where they may be exposed to voltage spikes, temperature variations, and mechanical vibrations. The high reliability of the IPA60R160C6 series reduces the risk of component failure, minimizing downtime and maintenance costs in critical applications.

## 3. Technical Specifications

### 3.1 Electrical Parameters
- **Drain - Source Voltage (VDS)**: Up to 600V, which determines the maximum voltage the device can handle between the drain and source terminals.
- **Continuous Drain Current (ID)**: It has a specified continuous drain current rating, which indicates the maximum current that can flow through the device continuously without causing overheating or damage.
- **On - Resistance (RDS(on))**: A very low value, typically in the range that ensures efficient power conduction and minimal power losses.
- **Gate - Source Voltage (VGS)**: The voltage range applied between the gate and source terminals to control the device's switching operation.

### 3.2 Thermal Parameters
- **Thermal Resistance (RθJC)**: This parameter describes the ability of the device to transfer heat from the junction to the case. A lower thermal resistance means better heat dissipation, which is crucial for maintaining the device's performance and reliability under high - power conditions.
- **Maximum Junction Temperature (TJmax)**: The highest temperature the device's junction can reach without experiencing permanent damage. The IPA60R160C6 series is designed to operate within a specified maximum junction temperature range to ensure long - term stability.

## 4. Applications

### 4.1 Power Supplies
In switching power supplies, the IPA60R160C6 series can be used as the main

Images for reference

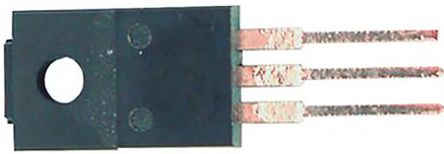

TO-220AB Full Pack
