INA116PA
Ultra-low bias current instrumentation amplifiers in 16-pin PDIP format
Manufacturer： ti
series introduction
# INA116PA: A Comprehensive Introduction to a High - Performance Instrumentation Amplifier
## 1. Overview
The INA116PA is a part of the instrumentation amplifier product series, which plays a crucial role in the field of signal processing and measurement. Instrumentation amplifiers are designed to amplify small differential signals while rejecting common - mode signals, making them ideal for applications where accurate measurement of weak signals in the presence of noise and interference is required.
## 2. Key Features
### 2.1 High Common - Mode Rejection Ratio (CMRR)
One of the most significant features of the INA116PA is its high CMRR. CMRR is a measure of the amplifier's ability to reject common - mode signals (signals that appear identically on both input terminals) while amplifying the differential signal (the difference between the two input signals). The INA116PA offers an excellent CMRR, typically in the range of 100 dB or higher. This high CMRR ensures that even in noisy environments where common - mode noise is present, the amplifier can accurately amplify the desired differential signal, resulting in high - quality output.
### 2.2 Low Input Bias Current
The input bias current of an amplifier is the average current flowing into the input terminals. A low input bias current is essential, especially when dealing with high - impedance sources. The INA116PA has a very low input bias current, which minimizes the voltage drop across the source impedance. This characteristic allows the amplifier to interface effectively with high - impedance sensors and other signal sources without significantly loading them, thereby preserving the integrity of the input signal.
### 2.3 Low Offset Voltage
Offset voltage is the voltage that appears at the output of the amplifier when the differential input voltage is zero. A low offset voltage is crucial for accurate signal amplification, especially for small - amplitude signals. The INA116PA has a low offset voltage, which reduces the error introduced in the amplification process. This ensures that the output signal accurately represents the input differential signal, even for very small input voltages.
### 2.4 Wide Bandwidth
The INA116PA offers a relatively wide bandwidth, which allows it to handle a wide range of input signal frequencies. This makes it suitable for applications where the input signal contains high - frequency components. The wide bandwidth ensures that the amplifier can accurately amplify the input signal without significant attenuation or distortion, enabling it to be used in high - speed data acquisition and communication systems.
## 3. Applications
### 3.1 Sensor Signal Conditioning
In sensor applications, the signals generated by sensors are often very small and may be accompanied by significant noise. The INA116PA can be used to condition these sensor signals. For example, in strain - gauge sensors, which are used to measure mechanical stress, the output signal is a small differential voltage. The INA116PA can amplify this small signal while rejecting common - mode noise, such as power - supply noise or electromagnetic interference, to provide a clean and amplified signal for further processing.
### 3.2 Medical Instrumentation
In medical devices, accurate measurement of biological signals is of utmost importance. The INA116PA can be used in electrocardiogram (ECG) machines, where it amplifies the small electrical signals generated by the heart. Its high CMRR helps to reject common - mode interference, such as 50/60 Hz power - line noise, and its low offset voltage and low input bias current ensure accurate measurement of the weak ECG signals.
### 3.3 Industrial Process Control
In industrial settings, sensors are used to monitor various process parameters such as temperature, pressure, and flow. The INA116PA can be used to amplify the signals from these sensors. Its
Images for reference

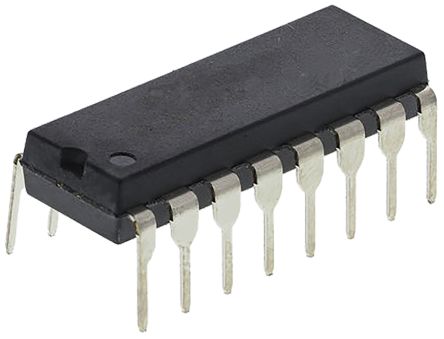

16-DIP SOT38-1
