IM21-14EX-CDTRI

series introduction

# IM21 - 14EX - CDTRI Product Series Introduction

## Overview
The IM21 - 14EX - CDTRI product series represents a cutting - edge solution in the realm of industrial electronics. Engineered with precision and innovation, this series is designed to meet the diverse and demanding requirements of modern industrial applications. Whether it's for automation systems, control panels, or monitoring devices, the IM21 - 14EX - CDTRI series offers reliable performance and advanced functionality.

## Key Features

### High - Precision Sensing
At the core of the IM21 - 14EX - CDTRI series is its high - precision sensing capabilities. The sensors integrated into these products are capable of detecting even the slightest changes in the physical parameters they are designed to monitor. For example, in temperature sensing applications, they can measure temperature variations with an accuracy of up to ±0.1°C, ensuring that critical processes are maintained within the desired temperature range. This high level of precision is crucial in industries such as pharmaceuticals, food processing, and semiconductor manufacturing, where even minor temperature fluctuations can have a significant impact on product quality.

### Extended Environmental Resistance
The IM21 - 14EX - CDTRI series is built to withstand harsh environmental conditions. These products are designed with robust enclosures that offer protection against dust, moisture, and vibration. They are rated to operate in a wide temperature range, from - 40°C to 85°C, making them suitable for use in both extremely cold and hot environments. Additionally, they are resistant to chemical corrosion, which is essential in industrial settings where exposure to various chemicals is common. This extended environmental resistance ensures the long - term reliability and durability of the products, reducing maintenance costs and downtime.

### Multiple Communication Protocols
To facilitate seamless integration into existing industrial systems, the IM21 - 14EX - CDTRI series supports multiple communication protocols. It can communicate via Modbus RTU, Profibus, and Ethernet, allowing it to interface with a wide range of control systems, PLCs (Programmable Logic Controllers), and SCADA (Supervisory Control and Data Acquisition) systems. This flexibility in communication protocols enables easy data transfer and remote monitoring, enhancing the overall efficiency of industrial processes.

### Compact Design
The products in the IM21 - 14EX - CDTRI series feature a compact design, which is ideal for applications where space is limited. Their small form factor allows for easy installation in tight spaces, such as control cabinets or small machinery. Despite their compact size, they do not compromise on performance, offering all the advanced features and functionality required for industrial applications.

## Technical Specifications

### Input/Output
The IM21 - 14EX - CDTRI series offers a variety of input and output options. It has multiple analog inputs that can accept signals from different types of sensors, such as thermocouples, RTDs (Resistance Temperature Detectors), and pressure sensors. The analog outputs can be used to control actuators or other devices based on the measured values. In addition, there are digital inputs and outputs for simple on/off control and status monitoring.

### Power Supply
These products are designed to operate on a wide range of power supplies. They can accept both AC and DC power, with input voltages ranging from 12V to 24V. This flexibility in power supply options makes them suitable for use in different industrial environments, where the available power sources may vary.

### Memory and Processing
The IM21 - 14EX - CDTRI series is equipped with sufficient memory and processing power to handle complex data processing tasks. It can store historical data for analysis and troubleshooting purposes. The built - in microprocessor ensures fast and accurate data processing, enabling real - time monitoring and control of industrial processes.

## Applications

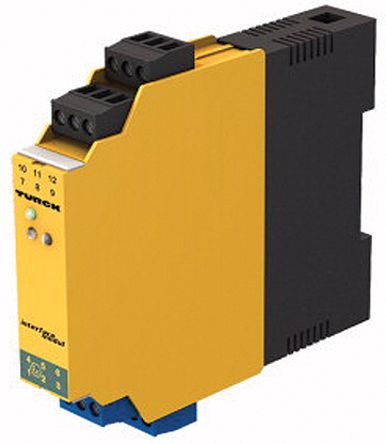

Images for reference
