# IHLP6767GZER2R2M01 Product Series Introduction

## 1. Overview
The IHLP6767GZER2R2M01 belongs to a high - performance inductor product series. Inductors are fundamental passive components in electronic circuits, and this particular series is designed to meet the demanding requirements of modern electronic applications. These inductors play a crucial role in energy storage, filtering, and impedance matching, ensuring the stable and efficient operation of various electronic systems.

## 2. Physical Characteristics
### Dimensions
The IHLP6767GZER2R2M01 features a well - defined physical size. The "6767" in the model number typically indicates the package dimensions. It has a relatively compact form factor, which is beneficial for applications where space is at a premium. This allows for easy integration into printed circuit boards (PCBs) without taking up excessive real estate, enabling more complex and miniaturized circuit designs.

### Construction
These inductors are constructed using high - quality materials. The core material is carefully selected to provide low core losses and high magnetic permeability. The winding is made of high - conductivity wire, which helps to minimize resistance and improve the overall efficiency of the inductor. The construction also ensures good mechanical stability, making the inductor resistant to vibrations and shocks, which is essential for applications in harsh environments.

## 3. Electrical Specifications
### Inductance
The "2R2" in the model number indicates an inductance value of 2.2 μH (microhenries). Inductance is a measure of the inductor's ability to store energy in a magnetic field. A 2.2 μH inductance value makes this inductor suitable for a wide range of applications, such as power supply circuits, where it can be used for filtering and energy storage.

### Tolerance
The "M" in the model number represents the inductance tolerance. In this case, it typically indicates a tolerance of ±20%. This tolerance range is important as it affects the performance of the circuit. Designers need to take this into account when selecting the inductor for a specific application to ensure that the circuit operates within the desired parameters.

### DC Resistance (DCR)
The IHLP6767GZER2R2M01 has a relatively low DC resistance. Low DCR is desirable because it reduces power losses in the inductor, resulting in higher efficiency. This is especially important in power - sensitive applications, such as battery - powered devices, where minimizing power consumption is crucial for extending battery life.

### Saturation Current
The inductor has a specified saturation current. Saturation occurs when the magnetic core of the inductor can no longer support an increase in the magnetic field, causing the inductance to decrease significantly. The saturation current rating of the IHLP6767GZER2R2M01 indicates the maximum current that the inductor can handle before saturation becomes a problem. This is an important parameter for applications where high - current handling is required, such as in power converters.

## 4. Performance Advantages
### High - Frequency Performance
This product series exhibits excellent high - frequency performance. It can operate effectively at high frequencies, which is essential for modern electronic systems that often operate in the MHz or even GHz range. The low core losses and high - quality construction allow the inductor to maintain its performance characteristics at these high frequencies, reducing signal distortion and improving overall system efficiency.

### Thermal Performance
The IHLP6767GZER2R2M01 is designed to have good thermal performance. The materials used in its construction have good heat dissipation properties, which helps to keep the inductor cool during operation. This is important because excessive heat can degrade the performance of the inductor

Images for reference

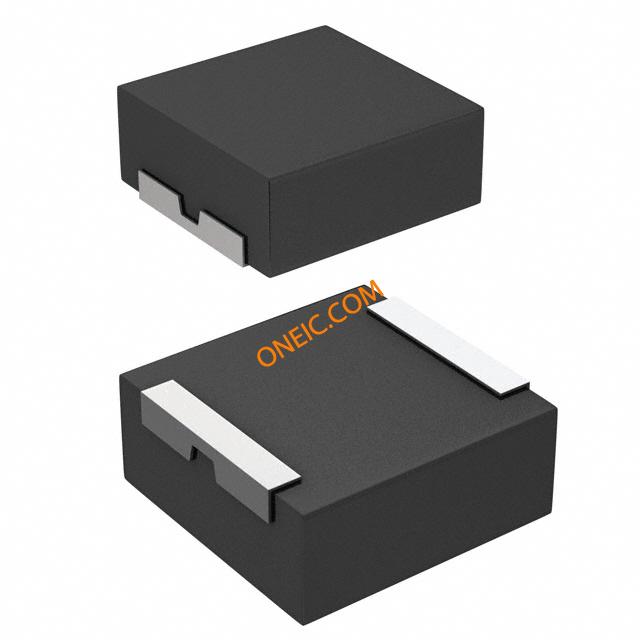

IHLP 0.675" L x 0.675" W

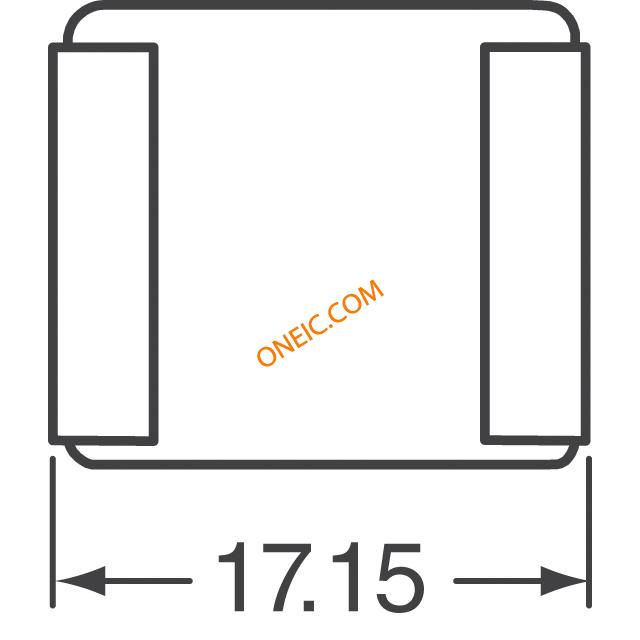

IHLP6767GZ Series Bottom
