# Introduction to the IHLP2020BZER100M11 Product Series

## 1. Overview
The IHLP2020BZER100M11 is a cutting - edge product series within the field of inductors, designed to meet the diverse and demanding requirements of modern electronic circuits. These inductors are engineered with precision and advanced technology to offer high - performance solutions for a wide range of applications.

## 2. Physical Characteristics
### Size and Dimensions
The IHLP2020BZER100M11 series features a compact 2020 package size. This small form factor makes it an ideal choice for applications where space is at a premium, such as in portable electronic devices, miniaturized power supplies, and compact circuit boards. The standardized package dimensions ensure easy integration into existing circuit designs, allowing for seamless replacement or addition to the system.

### Construction
These inductors are constructed using high - quality materials. The core material is carefully selected to provide excellent magnetic properties, which contribute to the overall performance of the inductor. The winding is made of high - conductivity wire, which helps to minimize resistance and power losses. The robust construction also ensures mechanical stability, making the inductors resistant to vibrations and shocks, which is crucial in automotive and industrial applications.

## 3. Electrical Specifications
### Inductance
The "100" in the part number indicates an inductance value of 10 μH. This inductance value is carefully calibrated and maintained within a tight tolerance range. The specific tolerance for the IHLP2020BZER100M11 series is ±20% (denoted by the "M" in the part number). This relatively tight tolerance ensures consistent performance across different units, which is essential for the proper functioning of electronic circuits.

### Saturation Current
The series is designed to handle high saturation currents. Saturation current is the maximum current at which the inductance value of the inductor drops to a specified percentage (usually 20%) of its initial value. The IHLP2020BZER100M11 can handle significant saturation currents, making it suitable for power - hungry applications such as voltage regulators, DC - DC converters, and motor control circuits.

### DC Resistance (DCR)
The DC resistance of the inductor is an important parameter as it affects the power efficiency of the circuit. The IHLP2020BZER100M11 series has a relatively low DC resistance, which means less power is dissipated as heat during operation. This low DCR helps to improve the overall efficiency of the circuit, reduce energy consumption, and extend the lifespan of the components.

## 4. Performance Advantages
### High - Frequency Performance
These inductors are optimized for high - frequency operation. They exhibit low core losses at high frequencies, which is crucial in modern electronic systems that operate at MHz or even GHz frequencies. This high - frequency performance makes the IHLP2020BZER100M11 series suitable for applications such as RF circuits, wireless communication devices, and high - speed data processing systems.

### Thermal Performance
The design of the IHLP2020BZER100M11 series takes into account thermal management. The materials used and the construction method allow for efficient heat dissipation. This helps to maintain the inductor's performance even under high - power and high - temperature conditions. In applications where the inductor is subjected to continuous high - current operation, the good thermal performance ensures reliability and stability.

## 5. Application Areas
### Consumer Electronics
In smartphones, tablets, and laptops, the IHLP2020BZER100M1

Images for reference

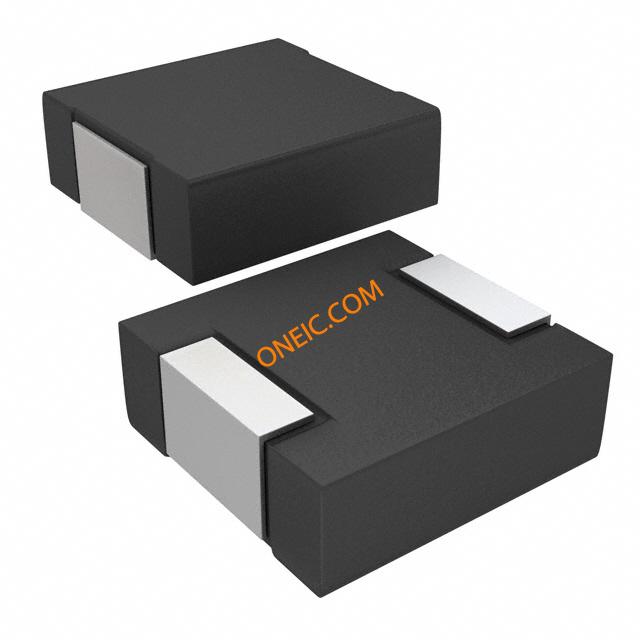

IHLP 0.216"L x 0.204"W

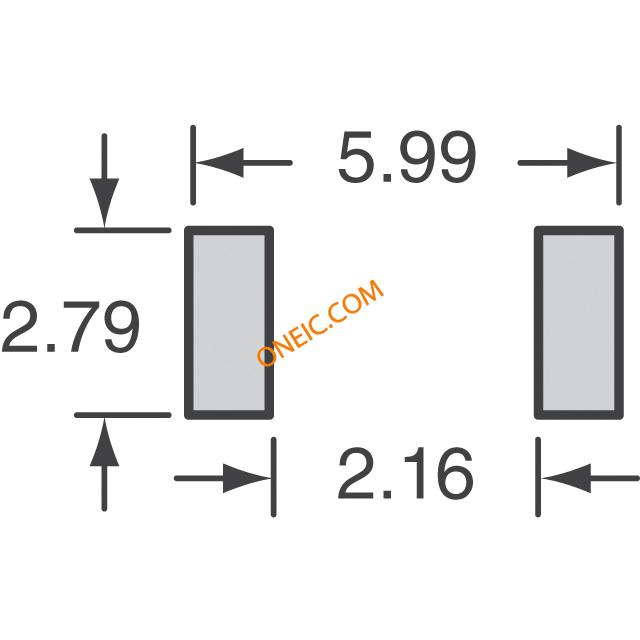

IHLP2020BZER Series Footprint

Datasheets

Partlist

IHLP2020BZER100M11
