IDT7202LA12
Dual 9kbit FIFO memory chips with 1K x 9 bit capacity, 12ns speed, 5V operation
Manufacturer： idt
series introduction
The **IDT7202LA12 Series** is a family of high-performance asynchronous FIFO (First-In, First-Out) memory devices designed to facilitate efficient data buffering and transfer in a wide range of digital systems. These FIFOs are engineered to address the challenges of data rate matching, clock domain crossing, and temporary storage in applications where seamless data flow is critical. With a robust architecture and advanced features, the IDT7202LA12 Series is a reliable solution for industries requiring high-speed data handling and synchronization.
One of the key features of the IDT7202LA12 Series is its **asynchronous operation**, which allows independent read and write clocks, enabling seamless data transfer between systems operating at different frequencies. This makes the series particularly suitable for applications such as telecommunications, networking, and industrial automation, where data streams often originate from sources with varying clock domains. The devices in this series offer a **12-bit wide data bus**, providing ample bandwidth for handling medium to high-density data streams efficiently. Additionally, the FIFOs are equipped with **programmable flags**, including Empty, Full, Half-Full, and Almost Empty/Full, which provide real-time status updates to the system, ensuring optimal data management and preventing overflow or underflow conditions.
The IDT7202LA12 Series is designed with **low power consumption** in mind, making it an excellent choice for power-sensitive applications. Its compact form factor and surface-mount packaging ensure compatibility with modern, space-constrained designs. The devices are built to operate reliably across a wide temperature range, making them suitable for use in harsh environments, such as automotive and industrial systems. Furthermore, the series supports **high-speed data rates**, enabling it to meet the demands of modern high-performance systems.
Typical applications for the IDT7202LA12 Series include **data acquisition systems**, **digital signal processing (DSP)**, **image processing**, and **network routers/switches**. In these applications, the FIFOs act as critical buffers, ensuring smooth data flow between processors, memory, and peripherals. Their ability to handle asynchronous data transfer makes them indispensable in systems where timing synchronization is a challenge. Overall, the IDT7202LA12 Series combines high performance, reliability, and versatility, making it a trusted choice for engineers designing advanced digital systems.
Images for reference
IDT7202LA12JG
28-DIP

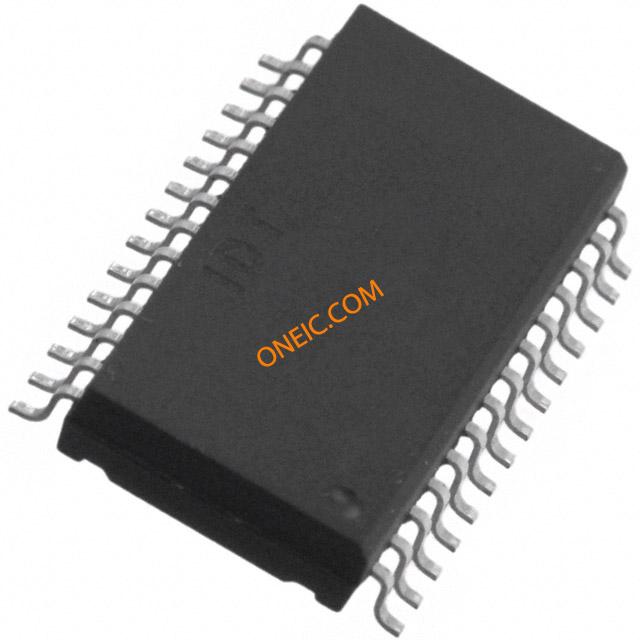

IDT7202LA12SOG
