HDO4024
High-definition 200MHz 4-channel benchtop digital oscilloscopes
Manufacturer： ['teledyne', 'lecroy']
series introduction
The **HDO4024 Series** is a high-performance line of oscilloscopes designed to meet the rigorous demands of modern electronics testing and analysis. Known for their exceptional signal integrity, advanced triggering capabilities, and user-friendly interface, these oscilloscopes are engineered to deliver precise measurements and insights into complex waveforms. With bandwidth options ranging from 200 MHz to 1 GHz, the HDO4024 Series is well-suited for a wide variety of applications, from basic circuit debugging to advanced signal analysis in high-speed digital systems.
One of the standout features of the HDO4024 Series is its **high-definition display technology**, which provides exceptional clarity and detail, even for fast-moving signals. The oscilloscopes in this series are equipped with **12-bit vertical resolution**, offering up to 16 times more detail than traditional 8-bit oscilloscopes. This makes them ideal for capturing subtle signal variations and noise, which are critical in applications such as power integrity analysis, RF signal characterization, and low-level sensor measurements. Additionally, the series boasts a **deep memory depth**, enabling users to capture and analyze long-duration waveforms without sacrificing resolution or accuracy.
The **design characteristics** of the HDO4024 Series emphasize both performance and usability. The oscilloscopes feature a sleek, ergonomic design with an intuitive touchscreen interface, allowing users to navigate menus, adjust settings, and analyze waveforms with ease. Advanced triggering options, including serial bus triggering and zone triggering, enable precise capture of specific events, while built-in analysis tools such as FFT, histograms, and mask testing streamline the debugging process. The series also supports a wide range of probes and accessories, ensuring compatibility with various measurement scenarios.
The HDO4024 Series is particularly well-suited for **use cases** in industries such as telecommunications, automotive, aerospace, and consumer electronics. In telecommunications, these oscilloscopes are invaluable for analyzing high-speed data signals and ensuring compliance with industry standards. In the automotive sector, they are used for testing advanced driver-assistance systems (ADAS) and in-vehicle networks. For aerospace applications, the series provides the reliability and precision needed for testing avionics and communication systems. Additionally, the oscilloscopes are widely used in research and development labs, where their advanced features and high performance support the development of cutting-edge technologies.
In summary, the HDO4024 Series represents a versatile and powerful solution for engineers and technicians who require accurate, detailed waveform analysis. Its combination of high-definition display, deep memory, and advanced triggering capabilities makes it an indispensable tool for a wide range of applications, ensuring that users can confidently tackle even the most challenging measurement tasks.
Images for reference

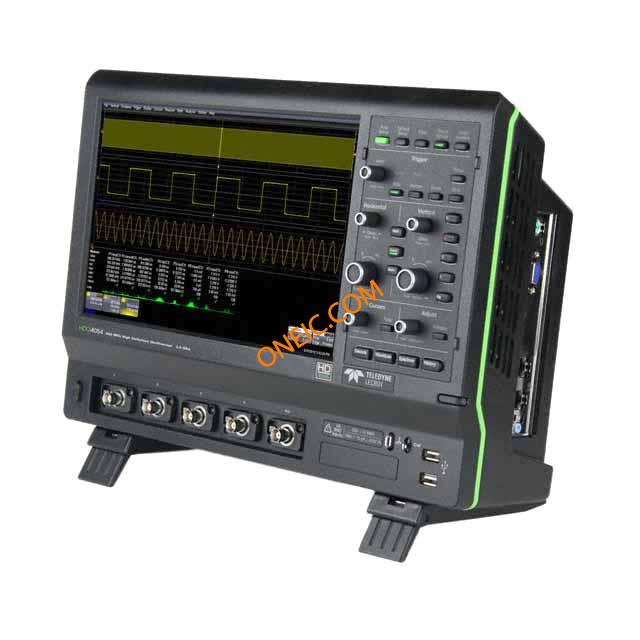

HDO4024 Series
