GTL2010
10-bit bidirectional voltage level translators for GTL and LVTTL interfaces
Manufacturer： nxp
series introduction
The **GTL2010 Series** is a family of high-performance, low-power, and compact logic level translators designed to facilitate seamless voltage level shifting between different logic domains in modern electronic systems. These devices are engineered to address the growing need for efficient signal translation in mixed-voltage environments, ensuring reliable communication between components operating at different voltage levels. With their robust design and advanced features, the GTL2010 Series is an ideal solution for applications requiring precise and efficient voltage translation.
One of the key features of the GTL2010 Series is its ability to support bidirectional voltage translation, enabling it to handle signals in both directions without the need for additional control signals. This simplifies system design and reduces component count, making it a cost-effective choice for designers. The series supports a wide range of voltage levels, typically from 1.2V to 3.6V, ensuring compatibility with a variety of logic families, including TTL, CMOS, and LVCMOS. Additionally, the GTL2010 Series is designed with low power consumption in mind, making it suitable for battery-powered and energy-efficient applications.
The compact form factor of the GTL2010 Series is another standout feature, allowing it to be easily integrated into space-constrained designs. Its small footprint and minimal external component requirements make it an excellent choice for high-density PCB layouts, such as those found in portable electronics, IoT devices, and embedded systems. The series also boasts fast propagation delays and high-speed operation, ensuring reliable performance in time-critical applications.
Typical applications for the GTL2010 Series include interfacing between microcontrollers, sensors, and peripherals in consumer electronics, industrial automation, and automotive systems. It is also widely used in communication modules, where reliable voltage translation is essential for maintaining signal integrity. With its combination of versatility, efficiency, and reliability, the GTL2010 Series is a trusted solution for designers seeking to bridge the gap between different logic voltage domains in their systems.
Images for reference

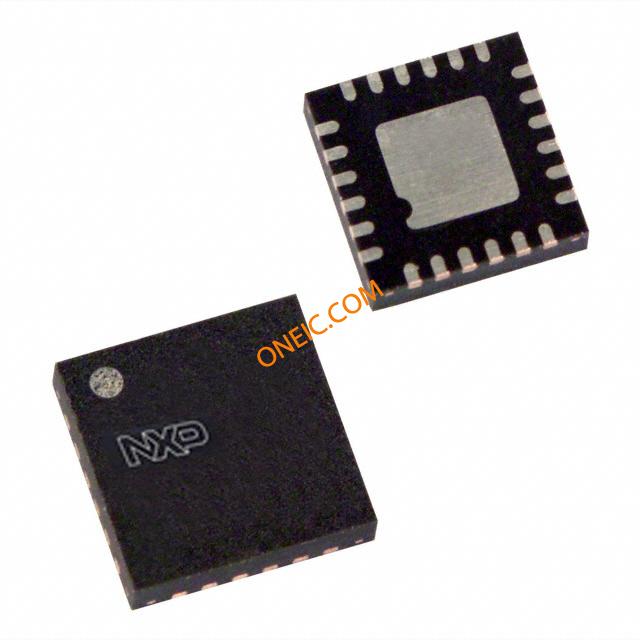

24-HVQFN,SOT616
24-TSSOP
