GRM319R60J106KE19D
Surface-mount ceramic capacitors for compact electronic circuits
Manufacturer： murata
series introduction
# Introduction to the GRM319R60J106KE19D Product Series
## 1. Overview
The GRM319R60J106KE19D belongs to a high - performance capacitor product series. Capacitors are fundamental components in electronic circuits, and this series is designed to meet a wide range of application requirements with its specific electrical characteristics and physical properties.
## 2. Electrical Specifications
### Capacitance
The "106" in the product code indicates a capacitance value of 10 μF (microfarads). This relatively large capacitance makes it suitable for applications where significant charge storage and energy buffering are required. For example, in power supply circuits, it can help smooth out voltage fluctuations by storing and releasing electrical energy as needed.
### Voltage Rating
The "J" in the code typically represents a voltage rating. In this case, it usually indicates a rated voltage of 6.3V. This means that the capacitor can safely operate in circuits where the maximum voltage across it does not exceed 6.3V. It is crucial to ensure that the operating voltage in the application is within this limit to prevent capacitor failure.
### Tolerance
The "K" indicates a capacitance tolerance of ±10%. This means that the actual capacitance value of the capacitor can vary within 10% of the nominal value (10 μF). For applications where precise capacitance values are critical, such as in some high - frequency filtering circuits, this tolerance should be taken into account during circuit design.
### Dielectric Type
The "R6" represents the dielectric material used in the capacitor. In this case, it is a Class II dielectric, which typically offers a relatively high capacitance per unit volume but may have some temperature - dependent characteristics. Class II dielectrics are commonly used in general - purpose applications where cost - effectiveness and high capacitance are important.
## 3. Physical Characteristics
### Package Size
The "GRM319" indicates the package size of the capacitor. This specific package is designed to be surface - mountable, which is highly suitable for modern printed circuit board (PCB) manufacturing processes. Surface - mount components allow for automated assembly, reducing production time and cost. The physical dimensions of the package are optimized to fit within the layout constraints of various PCBs, enabling compact and efficient circuit designs.
### Temperature Range
The capacitor is designed to operate within a specific temperature range. While the exact range may vary depending on the manufacturer's specifications, it is typically suitable for a wide range of environmental conditions. This allows the product to be used in various applications, from consumer electronics that operate at room temperature to industrial equipment that may be exposed to more extreme temperatures.
## 4. Applications
### Power Supply Filtering
One of the primary applications of the GRM319R60J106KE19D series is in power supply filtering. In power supply circuits, the capacitor can be used to filter out high - frequency noise and ripple from the DC voltage. By storing and releasing electrical energy, it helps to maintain a stable voltage level, which is essential for the proper operation of sensitive electronic components such as microprocessors, integrated circuits, and sensors.
### Decoupling
In digital circuits, the capacitor can be used as a decoupling capacitor. It provides a local source of electrical energy to the integrated circuits, reducing the effects of voltage drops and noise caused by the rapid switching of digital signals. This helps to improve the overall performance and reliability of the digital system.
### Signal Coupling
In some analog circuits, the capacitor can be used for signal coupling. It allows the AC component of a signal to pass through while blocking the DC component. This is useful in audio amplifiers, communication circuits, and other applications where the separation of AC and DC signals is required
Images for reference

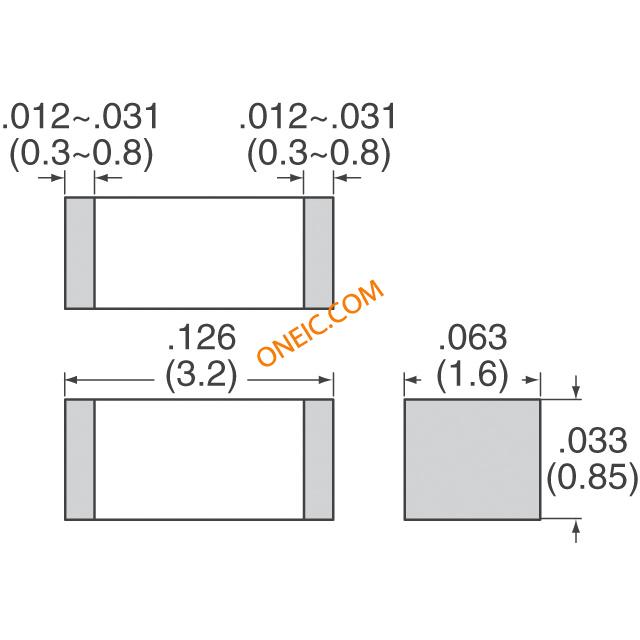

GRM Series_1206_0.85
