GRM316R61A
Compact multilayer ceramic capacitors for SMD applications, 2.2uF to 4.7uF, 10V, X5R dielectric
Manufacturer： murata
series introduction
The **GRM316R61A Series** is a high-performance line of surface-mount multilayer ceramic capacitors (MLCCs) designed to meet the rigorous demands of modern electronic applications. Known for their exceptional reliability, compact form factor, and robust electrical performance, these capacitors are engineered to deliver stable operation across a wide range of conditions. Utilizing a C0G (NP0) dielectric material, the GRM316R61A Series offers ultra-stable capacitance with a temperature coefficient of 0 ±30 ppm/°C, ensuring minimal capacitance drift over temperature variations. This makes them ideal for applications requiring precise and consistent performance, even in environments with fluctuating thermal conditions.
The GRM316R61A Series is characterized by its 1206 package size (3.2 mm x 1.6 mm), which strikes a balance between compactness and capacity, making it suitable for both space-constrained designs and applications requiring higher capacitance values. With a voltage rating of 100V and a capacitance range tailored for general-purpose and high-frequency applications, these capacitors excel in decoupling, filtering, and energy storage roles. Their low equivalent series resistance (ESR) and high self-resonant frequency (SRF) further enhance their performance in high-speed circuits, ensuring minimal signal loss and improved efficiency.
Designed with versatility in mind, the GRM316R61A Series is widely used across various industries, including telecommunications, automotive electronics, industrial automation, and consumer electronics. In telecommunications, they are commonly employed in RF modules, signal conditioning circuits, and power supply filtering. In automotive systems, their reliability and stability make them suitable for engine control units (ECUs), infotainment systems, and advanced driver-assistance systems (ADAS). Additionally, their robust performance in industrial environments ensures their use in motor drives, power inverters, and other high-reliability applications.
The GRM316R61A Series combines advanced materials, precision engineering, and a focus on durability, making it a trusted choice for designers seeking high-quality capacitors that deliver consistent performance in demanding applications. Whether for high-frequency circuits, power management, or signal integrity, this series provides a reliable solution for a wide array of electronic designs.
Images for reference

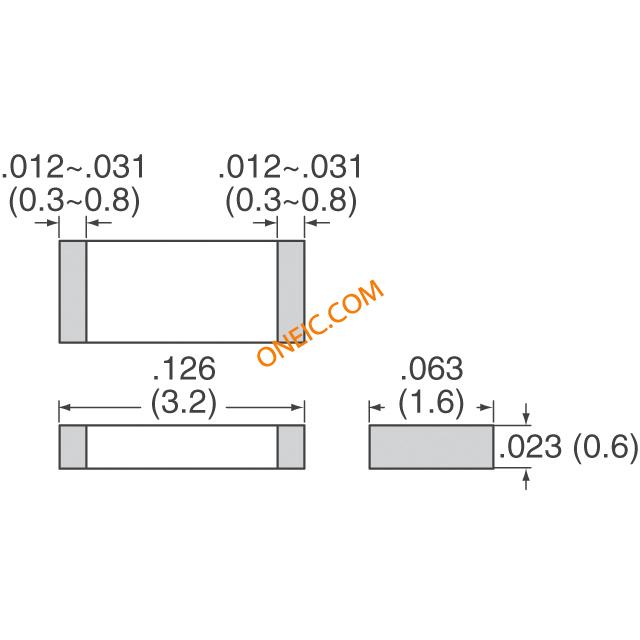

GRM Series_1206_0.6
1206
GRM Series_1206_0.6
