GRM155F51H
Compact Y5V ceramic capacitors for SMD applications, 50V, 0402 size
Manufacturer： murata
series introduction
The **GRM155F51H Series** is a high-performance line of surface-mount multilayer ceramic capacitors (MLCCs) designed to meet the rigorous demands of modern electronic applications. These capacitors are renowned for their exceptional electrical performance, compact size, and reliability, making them a preferred choice for a wide range of industries. Utilizing a C0G (NP0) dielectric material, the GRM155F51H Series offers ultra-stable capacitance with a temperature coefficient of 0 ±30 ppm/°C, ensuring consistent performance across a broad temperature range from -55°C to +125°C. This stability makes them ideal for applications requiring precision and minimal capacitance drift over time.
The GRM155F51H Series is characterized by its compact 0402 package size (1.0 mm x 0.5 mm), which is particularly advantageous for space-constrained designs. Despite their small footprint, these capacitors deliver robust performance with low equivalent series resistance (ESR) and high insulation resistance, ensuring efficient energy storage and signal filtering. The series supports a wide range of capacitance values and voltage ratings, providing flexibility for designers to tailor solutions to specific circuit requirements.
These capacitors are particularly well-suited for high-frequency and high-reliability applications, such as RF modules, telecommunications equipment, and precision analog circuits. Their low loss and high Q-factor make them ideal for use in oscillators, filters, and timing circuits, where signal integrity is critical. Additionally, the GRM155F51H Series is widely used in automotive electronics, medical devices, and industrial control systems, where durability and performance under harsh conditions are essential.
In summary, the GRM155F51H Series combines advanced materials, compact design, and superior electrical characteristics to deliver a reliable solution for modern electronic systems. Whether in consumer electronics, automotive applications, or industrial environments, these capacitors provide the precision and stability needed to ensure optimal performance in demanding conditions.
Images for reference

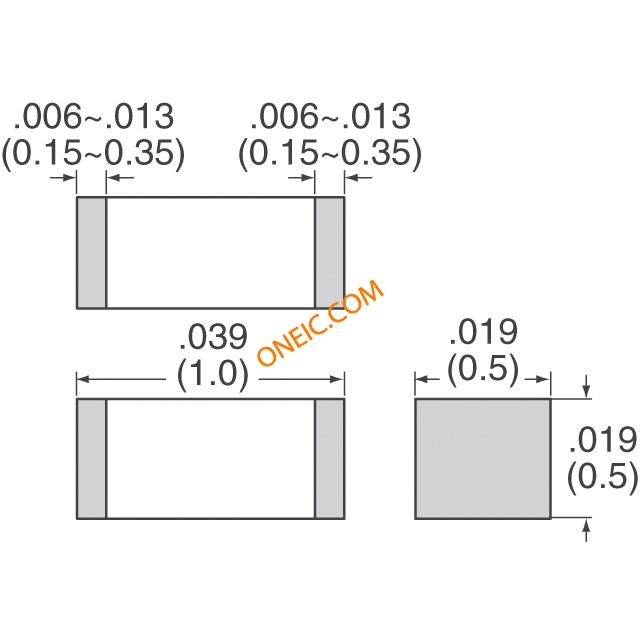

GRM Series_0402(0.5mm Thickness)
0402 Murata MLCC Caps
GRM Series_0402(0.5mm Thickness)
