GRM0335C1E101JA01D
Small 100pF ceramic capacitors for surface-mount electronic circuits
Manufacturer： murata
series introduction
# Introduction to the GRM0335C1E101JA01D Product Series
## 1. Overview
The GRM0335C1E101JA01D product series belongs to the realm of electronic components, specifically within the category of multilayer ceramic capacitors (MLCCs). These capacitors are essential building - blocks in modern electronic circuits, playing a crucial role in a wide range of applications due to their unique electrical properties and reliable performance.
## 2. Physical Characteristics
### Dimensions
The GRM0335C1E101JA01D capacitors are designed with a compact form factor. Their small size makes them ideal for use in space - constrained electronic devices such as mobile phones, wearables, and other portable electronics. Precise manufacturing processes ensure consistent dimensions, which is vital for seamless integration into printed circuit boards (PCBs).
### Construction
These MLCCs are constructed using multiple layers of ceramic dielectric material interleaved with metal electrodes. The ceramic dielectric provides the insulating properties, while the metal electrodes are responsible for storing and releasing electrical charge. The multilayer structure allows for a higher capacitance value to be achieved within a relatively small volume compared to single - layer capacitors.
## 3. Electrical Specifications
### Capacitance
The "101" in the product code indicates a capacitance value. In the standard notation for MLCCs, this translates to a capacitance of 100 pF (picofarads). This capacitance value is carefully calibrated during the manufacturing process to ensure accuracy and stability over a range of operating conditions.
### Voltage Rating
The "1E" in the code corresponds to a voltage rating. In this case, it indicates a rated voltage of 25V. This means that the capacitor can safely operate in circuits where the voltage across it does not exceed 25 volts. The voltage rating is an important parameter as exceeding it can lead to capacitor failure, such as dielectric breakdown.
### Tolerance
The "J" in the product code represents the capacitance tolerance. A "J" tolerance indicates a ±5% variation from the nominal capacitance value. This tight tolerance ensures that the capacitor's performance is predictable and consistent, which is crucial in applications where precise capacitance values are required, such as in resonant circuits and filtering applications.
### Temperature Coefficient
The ceramic material used in the GRM0335C1E101JA01D series has a specific temperature coefficient. This coefficient determines how the capacitance value changes with temperature. The design of these capacitors is optimized to have a relatively stable capacitance over a wide temperature range, ensuring reliable performance in different environmental conditions.
## 4. Performance Advantages
### Low Equivalent Series Resistance (ESR)
The GRM0335C1E101JA01D capacitors exhibit low ESR values. Low ESR is beneficial as it reduces power losses in the capacitor, especially in high - frequency applications. This results in improved efficiency of the overall circuit and less heat generation, which can enhance the reliability and lifespan of the electronic device.
### High Frequency Response
Due to their construction and electrical properties, these MLCCs have excellent high - frequency response characteristics. They can effectively filter out high - frequency noise and interference in circuits, making them suitable for use in radio frequency (RF) circuits, communication systems, and other high - speed electronic applications.
### High Reliability
The manufacturing process of the GRM0335C1E101JA01D series adheres to strict quality control standards. This ensures a high level of reliability, with a low failure rate over time. The capacitors are also resistant to mechanical stress, humidity, and other environmental factors, which further contributes to their long - term stability in various operating conditions.
## 5. Application Areas
### Consumer
Images for reference
0201-0603

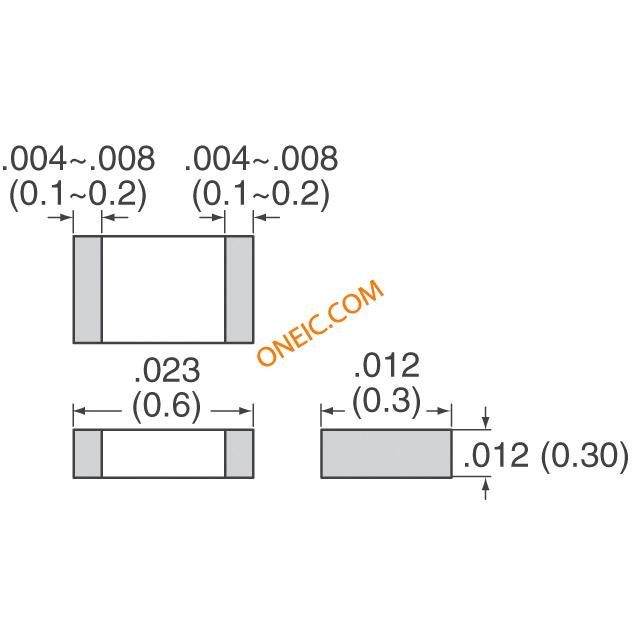

GRM Series_0201
