GP1UM261
Infrared remote control receivers with 38kHz frequency and 3-pin design
Manufacturer： sharp-microelectronics
series introduction
The **GP1UM261 Series** is a family of high-performance infrared (IR) receiver modules designed for remote control systems and other IR communication applications. These modules are engineered to deliver exceptional sensitivity, reliability, and noise immunity, making them ideal for use in environments with high levels of ambient light or electrical interference. The GP1UM261 Series is widely recognized for its compact design, low power consumption, and robust performance, making it a preferred choice for a variety of consumer and industrial applications.
At the core of the GP1UM261 Series is its advanced photodetector and preamplifier circuitry, which are integrated into a single package to ensure optimal signal reception and processing. The modules are capable of detecting IR signals modulated at carrier frequencies typically ranging from 30 kHz to 56 kHz, ensuring compatibility with a wide range of remote control protocols. Additionally, the series features a built-in automatic gain control (AGC) function, which dynamically adjusts the receiver's sensitivity to maintain consistent performance under varying signal conditions. This makes the GP1UM261 Series highly reliable in applications where signal strength may fluctuate.
The compact and lightweight design of the GP1UM261 Series makes it suitable for integration into space-constrained devices, such as smart home appliances, set-top boxes, air conditioners, and automotive infotainment systems. Its low power consumption further enhances its appeal for battery-operated devices, ensuring extended operational life without compromising performance. The modules are also designed to withstand harsh environmental conditions, with robust resistance to external noise and interference, making them suitable for use in industrial automation and outdoor equipment.
Typical applications for the GP1UM261 Series include remote control systems for consumer electronics, IR data communication in industrial settings, and proximity sensing in automotive and robotics applications. Its versatility, combined with its high reliability and ease of integration, has established the GP1UM261 Series as a trusted solution for designers and engineers seeking to implement efficient and dependable IR communication systems. Whether in high-volume consumer products or specialized industrial equipment, the GP1UM261 Series delivers consistent performance and durability, meeting the demands of modern IR-based applications.
Images for reference
GP1UM261RK0F
GP Series Side

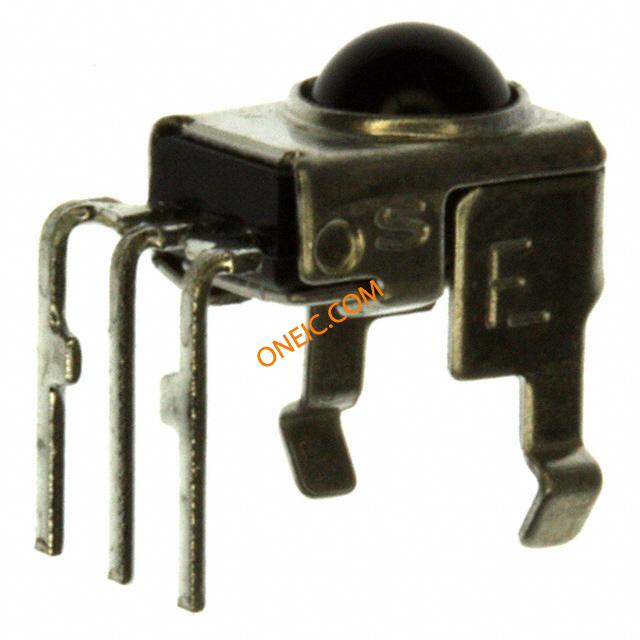

GP1UM261XK0F
