# Introduction to the GBPC2504W - E4 Product Series

## 1. Overview
The GBPC2504W - E4 product series is a remarkable line of bridge rectifiers that play a crucial role in power conversion and electrical circuit applications. These rectifiers are designed to convert alternating current (AC) into direct current (DC), a fundamental process in numerous electronic devices and power systems. With their high - performance capabilities and reliable design, the GBPC2504W - E4 series has become a popular choice among engineers and manufacturers in various industries.

## 2. Key Features

### 2.1 High Current Rating
One of the standout features of the GBPC2504W - E4 series is its high current - handling capacity. It is capable of handling a maximum average forward current of 25A. This high current rating makes it suitable for applications that require a significant amount of power, such as power supplies for industrial machinery, large - scale lighting systems, and high - power audio amplifiers.

### 2.2 Low Forward Voltage Drop
The rectifiers in this series have a relatively low forward voltage drop. A low forward voltage drop means that less power is dissipated as heat during the rectification process. This not only improves the overall efficiency of the circuit but also reduces the need for complex and bulky heat - dissipation mechanisms. As a result, the GBPC2504W - E4 series helps in creating more energy - efficient and compact electronic designs.

### 2.3 High Reverse Voltage Rating
The GBPC2504W - E4 series offers a high reverse voltage rating of 400V. This high reverse voltage tolerance ensures that the rectifiers can withstand large reverse - bias voltages without breaking down. It provides a safety margin in applications where there may be voltage spikes or transient events, protecting the circuit from damage and ensuring reliable operation.

### 2.4 Fast Recovery Time
These bridge rectifiers have a fast recovery time, which is essential for high - frequency applications. A fast recovery time allows the rectifier to switch quickly between the conducting and non - conducting states, enabling it to handle high - frequency AC signals efficiently. This makes the GBPC2504W - E4 series suitable for use in switching power supplies, inverters, and other high - frequency power conversion circuits.

### 2.5 Robust Construction
The GBPC2504W - E4 series is built with a robust and durable construction. It typically comes in a standard plastic package that provides good mechanical protection and electrical insulation. The package is designed to withstand harsh environmental conditions, including temperature variations, humidity, and mechanical vibrations. This makes the rectifiers suitable for use in a wide range of industrial and outdoor applications.

## 3. Applications

### 3.1 Power Supplies
In power supply units, the GBPC2504W - E4 series is used to convert the incoming AC mains voltage into DC voltage. It can be found in both linear and switching power supplies. In linear power supplies, it provides a stable DC output for low - power electronic devices such as small appliances and consumer electronics. In switching power supplies, its fast recovery time and high current - handling capacity make it ideal for high - power applications like computer power supplies and server power modules.

### 3.2 Motor Drives
Motor drives require a reliable source of DC power to control the speed and torque of electric motors. The GBPC2504W - E4 series can be used in motor drive circuits to convert the AC input voltage into DC, which is then used to power the motor control electronics. Its high current rating allows it to handle the large currents drawn by motors, ensuring smooth and efficient motor operation.

### 3.3 Battery Chargers
Battery chargers need to convert AC

Images for reference

GBPC-W

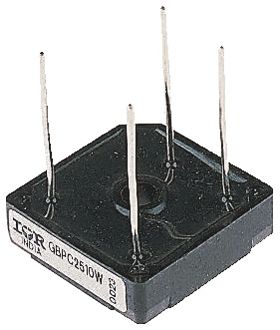

Image Preview
