# Introduction to the FX2C - 60S - 1.27DSA(71) Product Series

## 1. Overview
The FX2C - 60S - 1.27DSA(71) product series represents a cutting - edge solution in the realm of electronic components. Engineered with precision and innovation, this series is designed to meet the diverse and demanding requirements of modern electronic systems. Whether it's for industrial automation, consumer electronics, or telecommunications, these components offer reliable performance and advanced functionality.

## 2. Key Features

### 2.1 High - Density Design
The 1.27mm pitch in the DSA (Dual - Side Assembly) configuration of the FX2C - 60S - 1.27DSA(71) series allows for high - density mounting on printed circuit boards (PCBs). This compact design is crucial in applications where space is at a premium, enabling the development of smaller and more integrated electronic devices. It also helps in reducing the overall size of the PCB, which can lead to cost savings in terms of materials and manufacturing.

### 2.2 Superior Electrical Performance
These components are engineered to provide excellent electrical conductivity. With low contact resistance, they ensure efficient signal transmission, minimizing signal loss and interference. This is particularly important in high - speed data transmission applications, where even small signal degradations can lead to significant errors. The series also offers high insulation resistance, which helps in preventing electrical leakage and enhancing the overall reliability of the system.

### 2.3 Robust Mechanical Construction
The FX2C - 60S - 1.27DSA(71) series is built to withstand harsh operating conditions. The connectors are designed with strong and durable materials that can resist mechanical stress, such as vibration and shock. This makes them suitable for use in industrial environments where equipment is often subject to rough handling and movement. Additionally, the connectors have a high mating cycle rating, ensuring long - term reliability even with frequent connection and disconnection.

### 2.4 Compatibility
The series is designed to be compatible with a wide range of PCBs and other electronic components. It follows industry - standard specifications, which means that it can be easily integrated into existing systems without the need for major modifications. This compatibility also allows for greater flexibility in system design and upgrades.

## 3. Technical Specifications

### 3.1 Pin Configuration
The FX2C - 60S - 1.27DSA(71) series typically features a specific pin configuration that is optimized for efficient signal routing. The 60 - pin design provides a sufficient number of connections for various functions, such as power supply, data transmission, and control signals. The pin layout is carefully designed to minimize cross - talk between adjacent pins, ensuring reliable operation.

### 3.2 Operating Temperature Range
These components are designed to operate within a wide temperature range, typically from - 40°C to + 85°C. This wide operating temperature range makes them suitable for use in both indoor and outdoor applications, as well as in environments with extreme temperature variations.

### 3.3 Voltage and Current Ratings
The series is rated for specific voltage and current levels. The voltage rating ensures that the components can handle the electrical potential applied to them without breakdown, while the current rating determines the maximum amount of current that can flow through the connectors safely. These ratings are carefully selected to meet the requirements of different applications, from low - power consumer electronics to high - power industrial equipment.

## 4. Applications

### 4.1 Industrial Automation
In industrial automation systems, the FX2C - 60S - 1.27DSA(71) series can be used for connecting sensors, actuators, and control modules. The high

Images for reference

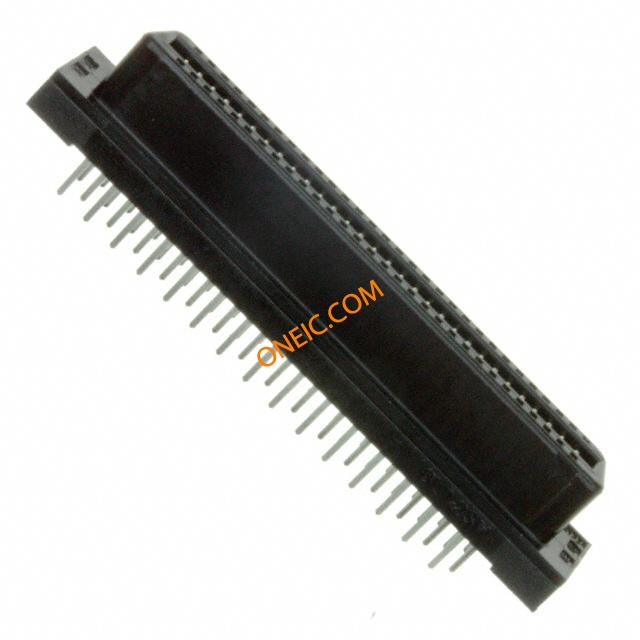

FX2C-60S-1.27DSA(71)

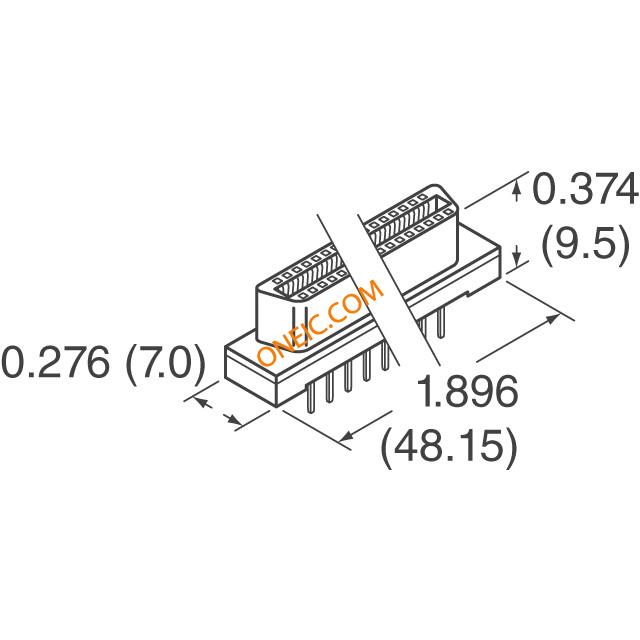

FX2C Straight Recept-60S
