# Introduction to the FSBB30CH60F Product Series
## Overview
The FSBB30CH60F product series represents a cutting - edge advancement in power semiconductor technology. These devices are designed to meet the diverse and demanding requirements of modern power electronics applications, offering a combination of high performance, reliability, and efficiency.
## Key Features
### High - Power Handling Capability
The FSBB30CH60F series is engineered to handle significant power levels. With a current rating of up to 30A and a voltage rating of 600V, these devices can efficiently manage large amounts of electrical power. This makes them suitable for applications such as industrial motor drives, where high - power output is essential for driving heavy - duty motors.
### Low On - State Resistance
One of the standout features of this product series is its low on - state resistance. A low on - state resistance translates into reduced power losses during operation. When the device is conducting current, less energy is dissipated as heat, which not only improves the overall efficiency of the system but also helps in reducing the cooling requirements. This is particularly beneficial in applications where energy efficiency is a top priority, such as in renewable energy systems like solar inverters.
### Fast Switching Speed
The FSBB30CH60F devices offer fast switching speeds. This allows for rapid changes in the conduction state of the device, enabling high - frequency operation. In high - frequency power converters, such as those used in telecommunications power supplies, fast switching speeds help in reducing the size of passive components like inductors and capacitors. Smaller components lead to more compact and lightweight power supply designs, which are highly desirable in modern electronic devices.
### Integrated Protection Features
To ensure the reliability and longevity of the system, the FSBB30CH60F series comes with integrated protection features. These include over - current protection, over - temperature protection, and under - voltage lockout. Over - current protection safeguards the device from excessive current flow, which could otherwise cause damage. Over - temperature protection monitors the device's temperature and shuts it down if it exceeds a safe operating limit. Under - voltage lockout ensures that the device operates only when the supply voltage is within the specified range, preventing improper operation and potential damage.
## Applications
### Industrial Motor Drives
In industrial settings, motor drives are used to control the speed and torque of electric motors. The FSBB30CH60F series is well - suited for these applications due to its high - power handling capability and fast switching speeds. It can efficiently convert electrical power to mechanical power, enabling precise control of motor operation. This results in improved productivity and energy savings in industrial processes.
### Renewable Energy Systems
Renewable energy sources such as solar and wind require power conversion systems to convert the DC power generated into AC power for use in the grid or in off - grid applications. The FSBB30CH60F devices can be used in solar inverters and wind power converters. Their low on - state resistance and high efficiency help in maximizing the power output from renewable energy sources, making them an ideal choice for sustainable energy solutions.
### Telecommunications Power Supplies
Telecommunications equipment requires stable and efficient power supplies. The high - frequency operation and fast switching speeds of the FSBB30CH60F series make it suitable for use in telecommunications power supplies. These devices can provide the necessary power with high efficiency, ensuring reliable operation of communication networks.
## Package and Thermal Design
The FSBB30CH60F series is available in a compact and thermally efficient package. The package design allows for easy mounting on printed circuit boards (PCBs) and provides good heat dissipation. The thermal design of the device ensures that it can operate within a wide temperature range without compromising its performance. This is crucial in applications where the device may be exposed to
Images for reference

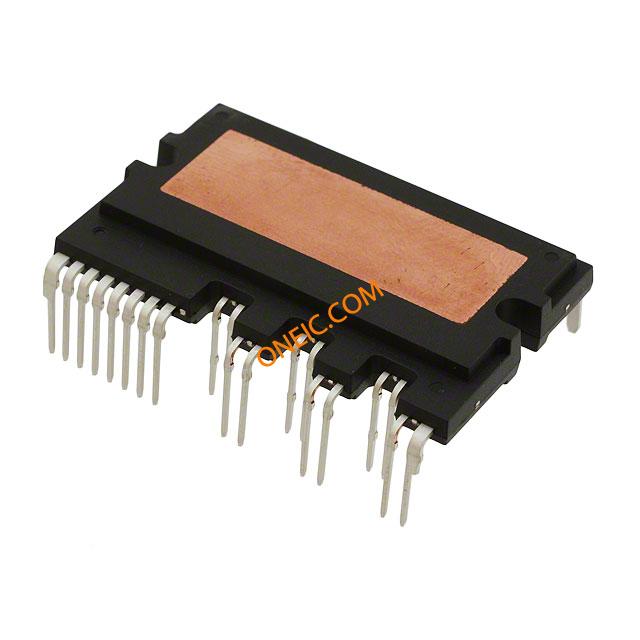

FSBB30CH60F

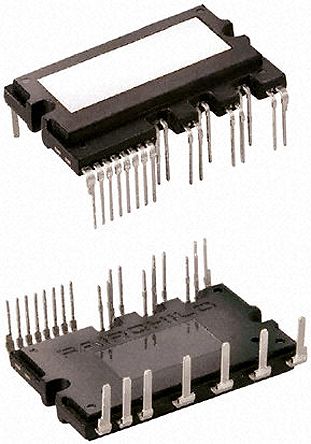

Image Preview
