FGL60N100BNTD
High-power N-channel IGBT transistors for induction heating applications
Manufacturer： ['fairchild', 'rochester', 'onsemi', 'freescale']
series introduction
# FGL60N100BNTD Product Series Introduction
## 1. Overview
The FGL60N100BNTD product series represents a cutting - edge line of power semiconductor devices, specifically designed to meet the demanding requirements of modern power electronics applications. These devices are engineered with advanced technology to offer high performance, reliability, and efficiency, making them an ideal choice for a wide range of industrial, commercial, and consumer applications.
## 2. Key Features
### 2.1 High Voltage and Current Ratings
- The FGL60N100BNTD series is rated for a high breakdown voltage of 1000V, which allows it to handle high - voltage applications with ease. This high - voltage capability makes it suitable for use in power supplies, motor drives, and other systems where high - voltage operation is required.
- With a continuous drain current rating of 60A, these devices can handle significant amounts of current, enabling them to drive high - power loads. This high - current capacity is essential for applications such as electric vehicle charging stations, industrial motor control, and high - power inverters.
### 2.2 Low On - Resistance
One of the standout features of the FGL60N100BNTD series is its low on - resistance (RDS(on)). A low on - resistance means that when the device is in the on - state, there is less power loss in the form of heat. This not only improves the overall efficiency of the system but also reduces the need for complex and bulky cooling solutions. As a result, the devices can operate more efficiently, leading to lower energy consumption and longer device lifetimes.
### 2.3 Fast Switching Speed
These power semiconductors offer fast switching speeds, which is crucial for applications that require high - frequency operation. Fast switching allows for more precise control of power flow, reduces switching losses, and enables the design of compact and high - performance power converters. In applications such as switch - mode power supplies (SMPS) and high - frequency inverters, the fast switching speed of the FGL60N100BNTD series helps to improve the overall system performance and reduce electromagnetic interference (EMI).
### 2.4 Ruggedness and Reliability
The FGL60N100BNTD series is built to be rugged and reliable. It is designed to withstand high - temperature environments, voltage spikes, and current surges. The devices are also protected against over - current, over - voltage, and over - temperature conditions, ensuring long - term stable operation. This reliability makes them suitable for use in harsh industrial environments, where system downtime can be costly.
## 3. Applications
### 3.1 Industrial Motor Drives
In industrial motor drives, the FGL60N100BNTD series can be used to control the speed and torque of electric motors. The high - voltage and high - current ratings, along with the fast switching speed, allow for precise control of the motor's operation. The low on - resistance helps to improve the efficiency of the motor drive system, reducing energy consumption and operating costs.
### 3.2 Power Supplies
For switch - mode power supplies, the FGL60N100BNTD devices are well - suited due to their high - voltage handling capability and fast switching speed. They can be used in both AC - DC and DC - DC converters to efficiently convert electrical power from one form to another. The low on - resistance reduces power losses, resulting in higher power supply efficiency and better thermal management.
### 3.3 Renewable Energy Systems
In renewable energy systems such as solar inverters and wind turbine converters, the FGL60N100BNTD series plays a vital role. These devices can handle the high - voltage and
Images for reference

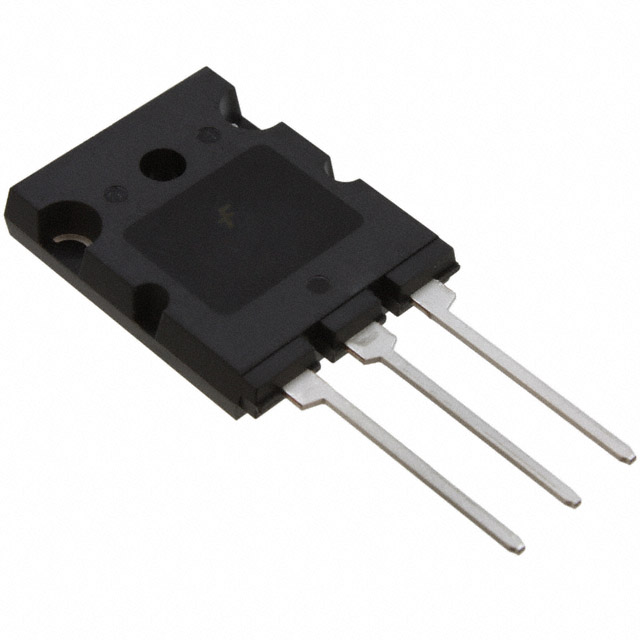

FGL60N100BNTD
