FDMS86252

N-channel MOSFETs for power applications, 150V, various current ratings

Manufacturer: ['fairchild', 'onsemi']

series introduction

# FDMS86252 Product Series Introduction

## 1. Overview
The FDMS86252 product series represents a cutting - edge advancement in power semiconductor technology. These devices are engineered to meet the diverse and demanding requirements of modern electronic systems, offering high - performance solutions for a wide range of applications. Whether it's in consumer electronics, industrial equipment, or automotive systems, the FDMS86252 series stands out for its reliability, efficiency, and advanced features.

## 2. Key Features

### 2.1 Low On - Resistance
One of the most significant features of the FDMS86252 series is its extremely low on - resistance (RDS(on)). Low on - resistance translates to reduced power losses during conduction. This is crucial in power management applications as it helps to minimize heat generation, improve overall system efficiency, and extend the battery life in portable devices. For example, in a battery - powered mobile device, the low RDS(on) of the FDMS86252 can lead to longer usage times between charges, enhancing the user experience.

### 2.2 High Current - Handling Capability
These devices are designed to handle high currents without significant degradation in performance. The high current - handling capacity makes them suitable for applications that require the delivery of large amounts of power, such as power supplies for servers and high - power LED lighting systems. The FDMS86252 can efficiently manage the flow of current, ensuring stable operation even under heavy load conditions.

### 2.3 Fast Switching Speed
The FDMS86252 series offers fast switching speeds, which is essential for high - frequency applications. Fast switching allows for more efficient power conversion and reduces the switching losses. In applications like switching power supplies, the ability to switch quickly enables the design of smaller and more efficient power converters. This not only saves board space but also reduces the overall cost of the system.

### 2.4 Enhanced Thermal Performance
To ensure reliable operation, the FDMS86252 series is designed with enhanced thermal performance. The devices are packaged in a way that allows for efficient heat dissipation. This is achieved through the use of advanced packaging materials and designs that maximize the surface area for heat transfer. As a result, the devices can operate at higher temperatures without experiencing thermal runaway, which is a common issue in power semiconductor devices.

### 2.5 Low Gate Charge
The low gate charge of the FDMS86252 series reduces the power required to drive the gate of the device. This is beneficial in applications where power consumption needs to be minimized, such as in battery - powered devices. A low gate charge also enables faster switching times, as less energy is required to charge and discharge the gate capacitance.

## 3. Applications

### 3.1 Consumer Electronics
In consumer electronics, the FDMS86252 series is widely used in mobile phones, tablets, laptops, and other portable devices. It can be found in power management circuits, such as battery charging circuits and voltage regulators. The low on - resistance and high efficiency of the devices help to optimize the power consumption of these devices, extending their battery life. Additionally, the fast switching speed is useful in applications like audio amplifiers, where it can improve the audio quality by reducing distortion.

### 3.2 Industrial Equipment
Industrial equipment often requires high - power and reliable power management solutions. The FDMS86252 series is well - suited for applications such as motor drives, industrial power supplies, and robotics. The high current - handling capability and enhanced thermal performance make these devices capable of withstanding the harsh operating conditions typically found in industrial environments. They can also contribute to the overall energy efficiency of industrial systems, reducing operating costs.

### 3.3 Automotive Electronics
In the automotive industry, the FDMS

Images for reference

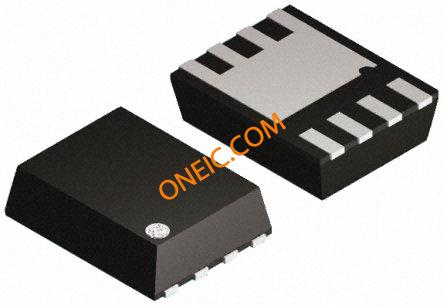

8-PQFN, Power56

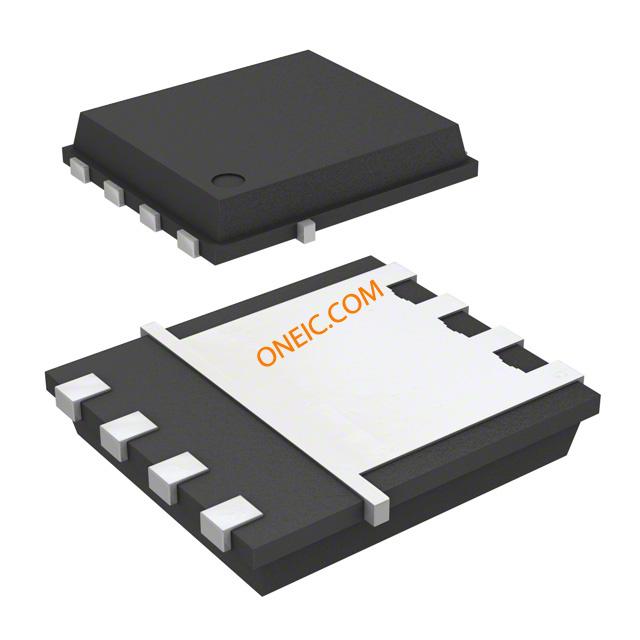

8-PQFN, Power56

Image Preview

Image Preview

Image Preview

Image Preview
