FC0402H
Thin film resistors for precision electronic circuits
Manufacturer： vishay
series introduction
The **FC0402H Series** is a high-performance line of surface-mount chip resistors designed to meet the rigorous demands of modern electronic circuits. Renowned for their precision, reliability, and compact form factor, these resistors are ideal for applications requiring high stability and low tolerance in a minimal footprint. The FC0402H Series is engineered to deliver exceptional performance across a wide range of operating conditions, making it a versatile choice for both general-purpose and specialized applications.
One of the standout features of the FC0402H Series is its ultra-compact 0402 package size (1.0 mm x 0.5 mm), which allows for efficient use of PCB real estate in high-density designs. This makes the series particularly well-suited for space-constrained applications such as smartphones, tablets, wearables, and IoT devices. Despite their small size, these resistors offer excellent power handling capabilities, with a rated power dissipation of up to 0.063W, ensuring reliable operation even in demanding environments.
The FC0402H Series is characterized by its low temperature coefficient of resistance (TCR), typically as low as ±100 ppm/°C, which ensures minimal resistance variation over a wide temperature range. This stability is critical for precision circuits where consistent performance is essential. Additionally, the series provides a wide range of resistance values, from a few ohms to several megaohms, catering to diverse circuit requirements. The resistors are also available with tight tolerance options, such as ±1% and ±0.5%, enabling designers to achieve high accuracy in their designs.
In terms of design, the FC0402H Series incorporates a robust construction with a high-quality ceramic substrate and a durable metal film, ensuring long-term reliability and resistance to environmental stressors such as humidity, thermal cycling, and mechanical shock. These features make the series suitable for use in harsh operating conditions, including automotive, industrial, and aerospace applications.
Typical applications for the FC0402H Series include signal conditioning, voltage division, current sensing, and impedance matching in a variety of electronic systems. Its combination of compact size, precision, and reliability makes it a preferred choice for designers working on advanced consumer electronics, medical devices, and telecommunications equipment. Whether used in high-frequency circuits or low-power analog systems, the FC0402H Series delivers consistent performance and durability, making it an indispensable component in modern electronics.
Images for reference
.jpg)

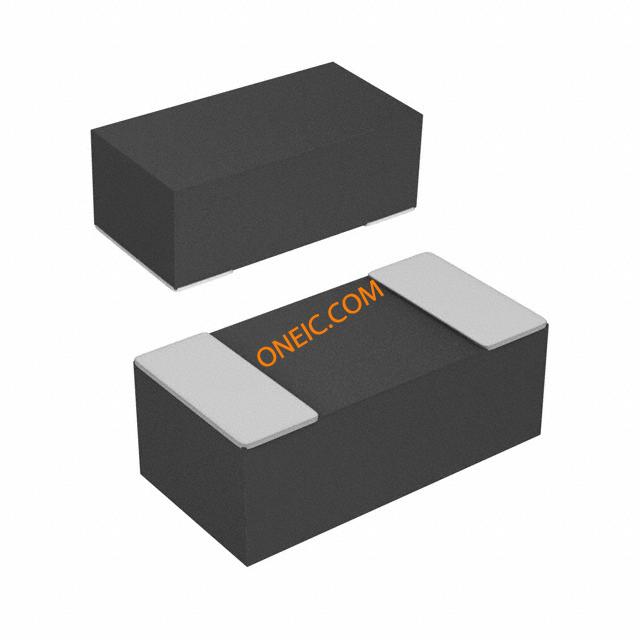

0402 FC Series (Top Termination)
