FAN5646
Programmable LED blinker drivers with compact WLCSP and SC-70 packages
Manufacturer： ['fairchild', 'rochester', 'onsemi']
series introduction
The **FAN5646 Series** is a family of high-performance LED driver ICs designed to deliver precise and efficient control for LED lighting applications. These drivers are engineered to provide consistent brightness, low power consumption, and robust performance, making them ideal for a wide range of lighting solutions. The FAN5646 Series is particularly well-suited for applications requiring compact, energy-efficient, and reliable LED driving capabilities.
One of the key features of the FAN5646 Series is its ability to support a wide input voltage range, enabling compatibility with various power sources. This flexibility ensures seamless integration into both low-voltage and high-voltage systems. Additionally, the series incorporates advanced current regulation technology, which ensures uniform brightness across multiple LEDs, even under varying load conditions. This makes the FAN5646 Series an excellent choice for applications where consistent illumination is critical.
The design of the FAN5646 Series emphasizes miniaturization and efficiency. The ICs are housed in compact packages, making them suitable for space-constrained applications such as portable electronics, automotive lighting, and IoT devices. The series also features built-in protection mechanisms, including over-temperature protection, over-current protection, and short-circuit protection, ensuring long-term reliability and safety in demanding environments.
Typical applications for the FAN5646 Series include backlighting for LCD displays, indicator lights, automotive interior and exterior lighting, and general-purpose LED illumination. Its ability to deliver precise current control and high efficiency makes it a preferred choice for designers working on energy-efficient lighting solutions. Furthermore, the series is widely used in consumer electronics, industrial equipment, and automotive systems, where reliability and performance are paramount.
In summary, the FAN5646 Series stands out as a versatile and reliable LED driver solution, offering advanced features, compact design, and robust performance. Whether for consumer electronics, automotive applications, or industrial lighting, the FAN5646 Series provides the efficiency and precision needed to meet the demands of modern LED lighting systems.
Images for reference
SOT25
4-WLCSP

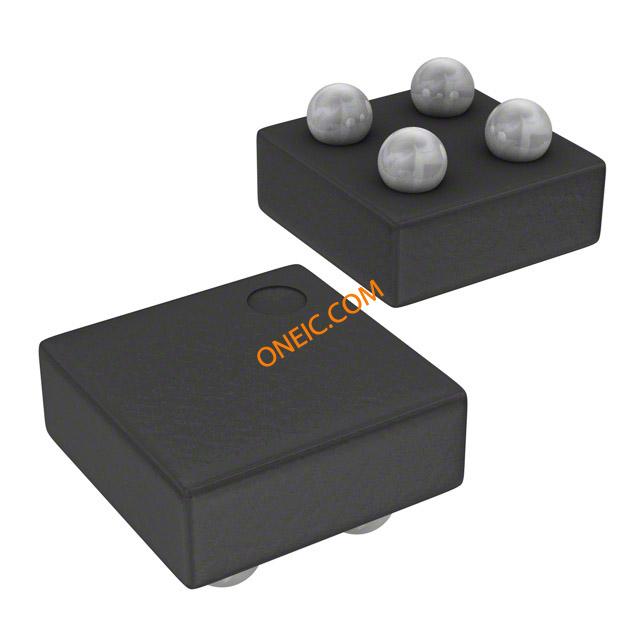

4-XFBGA
