# EVAL - ADXL362Z - DB Product Series Introduction

## 1. Overview
The EVAL - ADXL362Z - DB is a highly advanced and versatile product series designed for a wide range of applications that require precise motion and acceleration sensing. This evaluation board is centered around the ADXL362, a low - power, 3 - axis MEMS accelerometer, and it serves as an ideal platform for engineers, researchers, and hobbyists to explore and integrate the capabilities of the ADXL362 into their projects.

## 2. Key Components
### ADXL362 Accelerometer
- **MEMS Technology**: The ADXL362 is based on Micro - Electro - Mechanical Systems (MEMS) technology. This technology enables the creation of extremely small and sensitive sensors. The MEMS structure within the ADXL362 can detect changes in acceleration along three axes (X, Y, and Z) with high precision.
- **Low - Power Operation**: One of the standout features of the ADXL362 is its low - power consumption. It has a very low standby current, which makes it suitable for battery - powered applications where power efficiency is crucial. This allows devices using the ADXL362 to operate for extended periods without frequent battery replacements.
- **High - Resolution Sensing**: The accelerometer offers high - resolution measurement of acceleration. It can accurately detect even small changes in acceleration, making it suitable for applications such as vibration monitoring, tilt sensing, and impact detection.

### Evaluation Board (EVAL - ADXL362Z - DB)
- **Easy - to - Use Interface**: The evaluation board provides a user - friendly interface for interacting with the ADXL362. It includes connectors and headers that allow for easy connection to external devices such as microcontrollers, development boards, or data acquisition systems.
- **On - Board Components**: The board is equipped with additional components such as voltage regulators, decoupling capacitors, and communication interfaces. These components ensure stable power supply and reliable communication between the ADXL362 and external devices.
- **Test Points**: There are test points on the board that enable engineers to measure various electrical parameters such as voltage, current, and signal levels. This helps in debugging and optimizing the performance of the ADXL362 in different applications.

## 3. Technical Specifications

### Accelerometer Specifications
- **Measurement Range**: The ADXL362 supports a selectable measurement range of ±2 g, ±4 g, or ±8 g. This flexibility allows it to be used in a wide variety of applications, from gentle motion sensing to high - impact detection.
- **Resolution**: It offers a resolution of up to 12 - bit, which provides accurate measurement of acceleration values.
- **Bandwidth**: The bandwidth of the accelerometer can be adjusted from 1 Hz to 1 kHz, allowing users to filter out unwanted noise and focus on the relevant frequency range of the acceleration signals.

### Board Specifications
- **Power Supply**: The evaluation board can be powered from a wide range of sources, typically from 2.7 V to 3.6 V. This makes it compatible with various power supplies, including batteries and regulated power sources.
- **Communication Interfaces**: It supports both SPI (Serial Peripheral Interface) and I²C (Inter - Integrated Circuit) communication protocols. These interfaces allow for easy integration with different microcontrollers and other devices.

## 4. Applications
### Industrial Applications
- **Vibration Monitoring**: In industrial machinery, the EVAL - ADXL362Z - DB can be used to monitor the vibration levels of rotating equipment such as motors, pumps, and generators. By detecting abnormal vibrations, potential mechanical failures can be identified early, reducing downtime and maintenance costs.
- **Struct

Images for reference

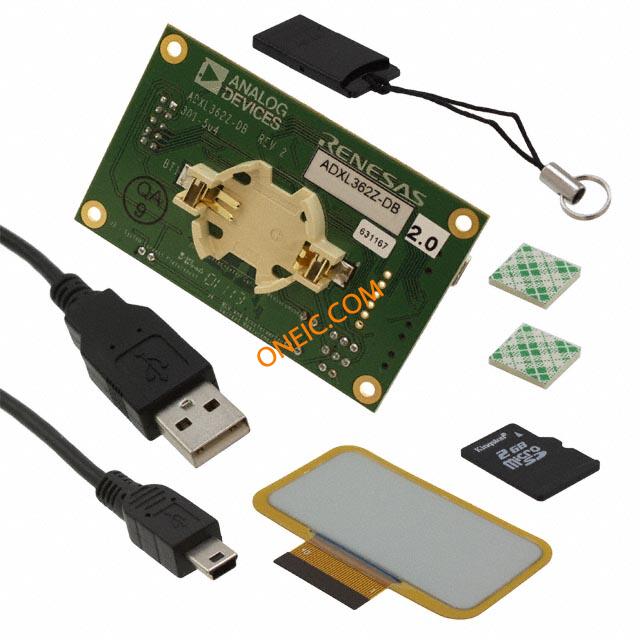

EVAL-ADXL362Z-DB
