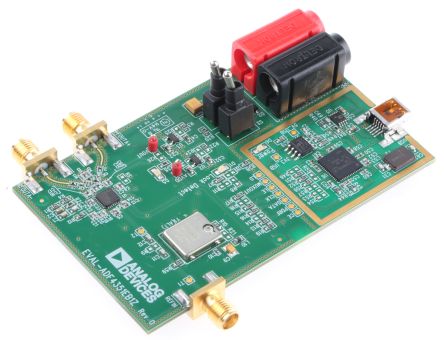

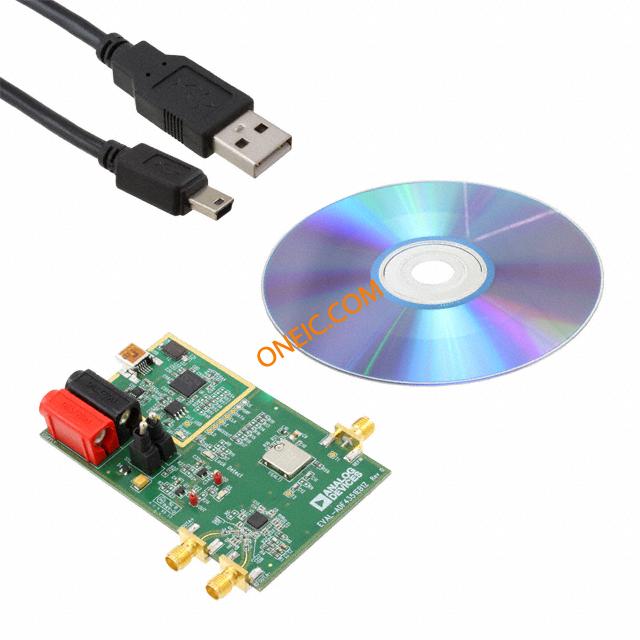

EVAL-ADF4351EB1Z
Evaluation board for wideband synthesizer with integrated VCO
Manufacturer： analog-devices
series introduction
# Introduction to the EVAL - ADF4351EB1Z Product Series
## 1. Overview
The EVAL - ADF4351EB1Z is a highly versatile and advanced evaluation board designed to facilitate the assessment and integration of the ADF4351 RF synthesizer. This product series serves as an invaluable tool for engineers, researchers, and hobbyists working in the fields of radio frequency (RF) design, wireless communication, and test and measurement.
## 2. Key Features of the ADF4351 RF Synthesizer
### 2.1 Wide Frequency Range
The ADF4351 RF synthesizer on the EVAL - ADF4351EB1Z offers an extremely wide frequency range from 34.375 MHz to 4.4 GHz. This broad range makes it suitable for a vast array of applications, including cellular communication systems (such as GSM, CDMA, and LTE), Wi - Fi, Bluetooth, and other wireless standards.
### 2.2 High - Resolution Frequency Tuning
It provides a high - resolution frequency tuning capability. The fractional - N synthesizer architecture allows for fine - grained frequency adjustments with a resolution as low as 0.0234375 Hz. This high precision is crucial for applications that require accurate frequency control, such as in radar systems and high - performance communication receivers.
### 2.3 Low Phase Noise
Phase noise is a critical parameter in RF systems as it affects the signal quality and the ability to distinguish between closely spaced signals. The ADF4351 features low phase noise performance, which ensures clean and stable output signals. This is particularly important in applications like satellite communication and high - speed data transmission, where signal integrity is of utmost importance.
### 2.4 Integrated Voltage - Controlled Oscillator (VCO)
The device comes with an integrated VCO, which simplifies the design process. By integrating the VCO, the overall size of the RF system can be reduced, and the number of external components is minimized. This not only saves board space but also reduces the cost and complexity of the design.
## 3. Features of the EVAL - ADF4351EB1Z Evaluation Board
### 3.1 Easy - to - Use Interface
The EVAL - ADF4351EB1Z evaluation board is equipped with a user - friendly interface. It typically includes a serial peripheral interface (SPI) that allows for easy communication between the evaluation board and a host controller, such as a microcontroller or a PC. This interface enables users to configure the ADF4351 synthesizer quickly and efficiently.
### 3.2 Comprehensive Documentation
The evaluation board is accompanied by detailed documentation, including a user manual, datasheets, and application notes. These resources provide in - depth information on the board's functionality, pin configurations, and programming examples. This makes it easier for users, even those with limited RF experience, to get started with the evaluation process.
### 3.3 Test Points and Connectors
The board is designed with multiple test points and connectors. These test points allow users to measure various electrical parameters, such as output power, frequency, and phase noise, using standard test equipment like spectrum analyzers and network analyzers. The connectors, on the other hand, provide convenient access to the input and output signals of the ADF4351 synthesizer.
### 3.4 Power Management
The EVAL - ADF4351EB1Z evaluation board includes a power management section. It can be powered from a variety of sources, such as a USB port or an external power supply. The power management circuitry ensures stable and regulated power delivery to the ADF4351 synthesizer, which is essential for its proper operation
