ESMH250VNN
High-capacity aluminum electrolytic capacitors with snap-in design
Manufacturer： united-chemi-con
series introduction
The **ESMH250VNN Series** is a high-performance line of aluminum electrolytic capacitors designed to meet the demanding requirements of modern electronic systems. These capacitors are characterized by their robust construction, high capacitance, and extended operational lifespan, making them ideal for a wide range of industrial and commercial applications. With a rated voltage of 250V, the ESMH250VNN Series is engineered to deliver reliable performance in high-voltage circuits, ensuring stability and efficiency in even the most challenging environments.
One of the standout features of the ESMH250VNN Series is its use of advanced electrolyte technology, which enhances the capacitor's ability to withstand high ripple currents and maintain consistent performance over time. This makes the series particularly well-suited for power supply applications, where stability and durability are critical. The capacitors are also designed with a low equivalent series resistance (ESR), which minimizes energy loss and heat generation, further improving their efficiency and reliability. Additionally, the series offers a wide operating temperature range, typically from -40°C to +105°C, ensuring dependable performance in both extreme cold and high-heat conditions.
The ESMH250VNN Series is housed in a compact, cylindrical aluminum case with a radial lead configuration, making it easy to integrate into a variety of circuit designs. Its robust construction ensures resistance to mechanical stress and vibration, which is essential for applications in industrial machinery, automotive systems, and renewable energy equipment. The capacitors are also compliant with RoHS and other environmental standards, reflecting a commitment to sustainability and safety.
Typical applications for the ESMH250VNN Series include switch-mode power supplies (SMPS), inverters, motor drives, and lighting systems. In these applications, the capacitors play a crucial role in smoothing voltage fluctuations, filtering noise, and storing energy, contributing to the overall efficiency and reliability of the system. Their high-voltage rating and robust design also make them suitable for use in renewable energy systems, such as solar inverters and wind turbines, where they help ensure stable power delivery under varying load conditions.
In summary, the ESMH250VNN Series combines high performance, durability, and versatility, making it an excellent choice for engineers and designers seeking reliable capacitors for high-voltage and high-power applications. Whether used in industrial automation, automotive electronics, or renewable energy systems, these capacitors deliver the performance and reliability needed to meet the demands of today's advanced technologies.
Images for reference
SMH35 Series (40.00mm)
SMH35 Series (40.00mm)

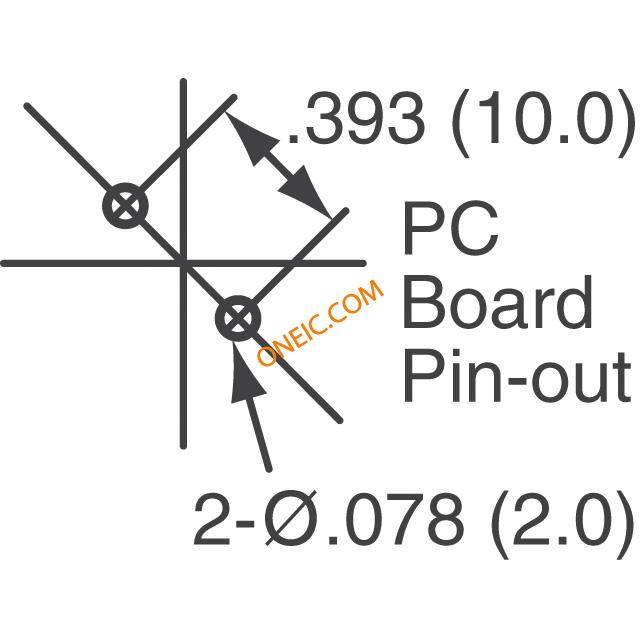

SMH Series Footprint
