ERJ-P06J302V

Compact thick film resistors for surface-mount electronic circuits

Manufacturer: panasonic

series introduction

# ERJ - P06J302V Product Series Introduction

## 1. Overview
The ERJ - P06J302V product series belongs to a specialized range of electronic components, specifically resistors. These resistors are designed to meet the diverse and demanding requirements of modern electronic circuits, offering high - performance and reliable solutions for various applications.

## 2. Key Specifications

### 2.1 Resistance Value
The "302" in the model number indicates the resistance value. Using the standard resistor coding system, where the first two digits are significant figures and the third is the multiplier, the resistance value of the ERJ - P06J302V is \(30\times10^{2}\Omega=3000\Omega = 3k\Omega\). This specific resistance value makes it suitable for a wide range of voltage - dividing, current - limiting, and signal - conditioning applications.

### 2.2 Tolerance
The "J" in the model represents the tolerance of the resistor. A "J" tolerance means that the actual resistance value of the resistor can deviate from the nominal value by ±5%. This level of tolerance is acceptable for many general - purpose electronic circuits where a high degree of precision is not critical. However, it still provides a reasonable level of accuracy for most applications.

### 2.3 Power Rating
The "P06" in the model is related to the power rating of the resistor. The power rating indicates the maximum amount of power that the resistor can safely dissipate without being damaged. For the ERJ - P06J302V series, the power rating is typically designed to handle a certain amount of power, which is suitable for low - to medium - power applications. This ensures that the resistor can operate stably under normal working conditions and helps prevent overheating and premature failure.

### 2.4 Temperature Coefficient
These resistors have a specific temperature coefficient, which describes how the resistance value changes with temperature. A low temperature coefficient is desirable as it means that the resistance value remains relatively stable over a wide temperature range. This characteristic is crucial for applications where the operating environment may experience temperature variations, such as in automotive electronics, industrial control systems, and outdoor electronic devices.

## 3. Physical Characteristics

### 3.1 Size and Package
The ERJ - P06J302V series comes in a standardized package size, which is designed for easy integration into printed circuit boards (PCBs). The compact size allows for high - density PCB layouts, making it suitable for applications where space is limited, such as in mobile devices, wearable electronics, and small - form - factor consumer products.

### 3.2 Construction
The resistors are constructed using high - quality materials and advanced manufacturing processes. The resistive element is typically made of a thin - film or thick - film material, which offers good electrical performance and stability. The outer casing provides protection against environmental factors such as moisture, dust, and mechanical stress, ensuring the long - term reliability of the resistor.

## 4. Applications

### 4.1 Consumer Electronics
In consumer electronics such as smartphones, tablets, and laptops, the ERJ - P06J302V resistors are used for various functions. They can be used in power management circuits to limit the current flowing through components, in audio circuits for signal conditioning, and in display circuits for voltage division.

### 4.2 Automotive Electronics
Automotive electronic systems require components that can operate reliably in harsh environments. The ERJ - P06J302V resistors are suitable for use in automotive applications such as engine control units (ECUs), lighting systems, and sensor circuits. Their stable performance over a wide temperature range and good tolerance make them reliable choices for these critical applications.

Images for reference

ERJ-0805 Pkg

ERJ-0805 Pkg

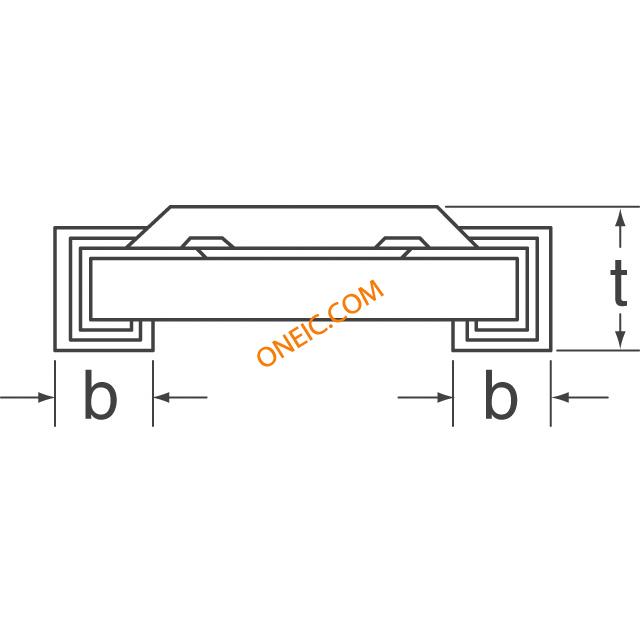

ERJ-P Series Side

ERJ-P Series Side

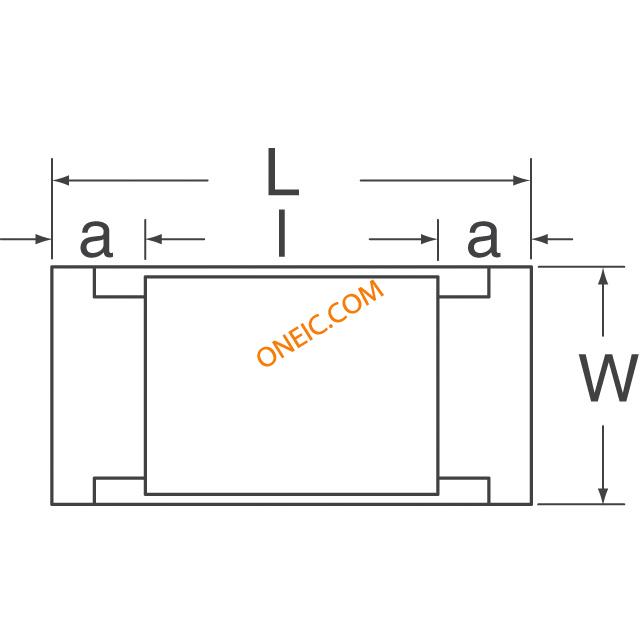

ERJ-P Series Top

ERJ-P Series Top
