EP2S180F1020I4
High-performance Stratix II FPGAs with 742 I/O and 1020-pin FBGA packaging
Manufacturer： altera
series introduction
# Introduction to the EP2S180F1020I4 Product Series
## 1. Overview
The EP2S180F1020I4 belongs to a high - performance field - programmable gate array (FPGA) product series. FPGAs are integrated circuits that can be configured by a customer or a designer after manufacturing, offering a high degree of flexibility and adaptability for a wide range of applications. The EP2S180F1020I4 is designed to meet the complex requirements of modern electronic systems, providing a balance between logic capacity, performance, and power consumption.
## 2. Key Features
### 2.1 Logic Capacity
- The "180" in the model number indicates a significant logic capacity. It contains a large number of configurable logic blocks (CLBs). These CLBs are the building blocks of the FPGA, allowing designers to implement various digital circuits, from simple combinational logic to complex sequential circuits such as state machines and processors. With this high logic capacity, the EP2S180F1020I4 can handle large - scale design projects, including multi - core processing systems and high - speed data processing applications.
### 2.2 Package Type
- The "F1020" refers to the package type. A 1020 - pin package provides a large number of input/output (I/O) pins. This is crucial for interfacing with external components such as memory chips, sensors, and communication modules. The abundance of I/O pins enables the FPGA to connect to multiple devices simultaneously, facilitating the development of complex systems that require extensive external connectivity.
### 2.3 Speed Grade
- The "I4" represents the speed grade. A higher speed grade generally means that the FPGA can operate at faster clock frequencies, resulting in quicker data processing and shorter propagation delays. This is essential for applications that demand high - speed data transfer and real - time processing, such as high - speed communication systems and high - performance computing.
### 2.4 Embedded Memory
- The EP2S180F1020I4 is equipped with a substantial amount of embedded memory. This includes block RAMs (BRAMs) and distributed RAMs. BRAMs are large - capacity memory blocks that can be used for storing data such as look - up tables, buffers, and small - scale databases. Distributed RAMs, on the other hand, are smaller but more widely distributed throughout the FPGA fabric, providing fast and local storage for intermediate data during processing.
### 2.5 Digital Signal Processing (DSP) Blocks
- It features dedicated DSP blocks. These blocks are optimized for performing high - speed arithmetic operations such as multiplication, addition, and accumulation. They are particularly useful in applications such as digital filtering, image and video processing, and wireless communication, where complex mathematical calculations need to be carried out in real - time.
## 3. Applications
### 3.1 Telecommunications
- In telecommunications systems, the EP2S180F1020I4 can be used for baseband processing. It can handle tasks such as channel coding, modulation, and demodulation. Its high - speed processing capabilities and large number of I/O pins make it suitable for interfacing with different communication standards, including 4G, 5G, and Wi - Fi. Additionally, it can be used in network routers and switches for packet forwarding and traffic management.
### 3.2 Industrial Automation
- For industrial automation, the FPGA can be used to control and monitor industrial processes. It can interface with sensors to collect data such as temperature, pressure, and flow rate, and then use its logic resources to process this data and generate control signals for actuators. Its reconfigurability allows for easy adaptation
Images for reference

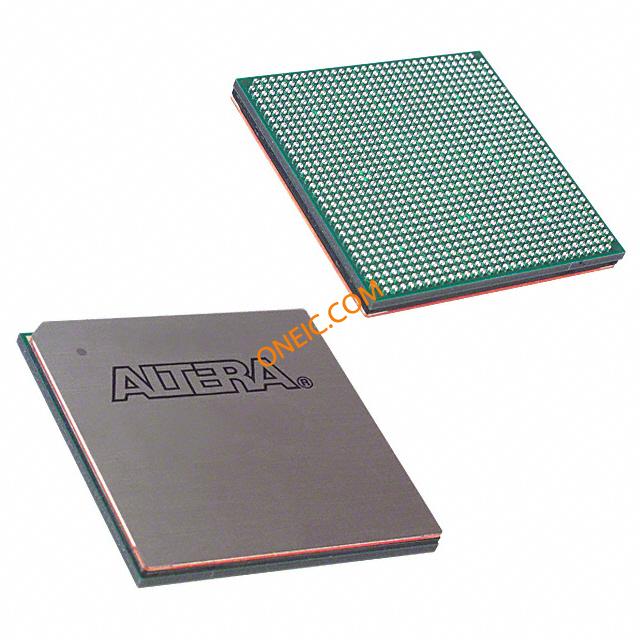

1020-FBGA
