DSPIC33FJ64GP204-E/ML
16-bit digital signal controllers with 64KB flash memory
Manufacturer： microchip
series introduction
# Introduction to the DSPIC33FJ64GP204 - E/ML Product Series
## 1. Overview
The DSPIC33FJ64GP204 - E/ML is a highly advanced and versatile microcontroller product series from Microchip Technology. This series combines the power of a digital signal processor (DSP) with the flexibility of a traditional microcontroller, making it an ideal choice for a wide range of applications that require high - performance processing, real - time control, and efficient data handling.
## 2. Key Features
### 2.1 Processing Power
- **High - Performance Core**: The DSPIC33FJ64GP204 - E/ML is based on a 16 - bit dsPIC® DSC (Digital Signal Controller) core. This core offers a high - speed instruction execution rate, enabling it to handle complex algorithms and tasks with ease. It can execute instructions at up to 40 MIPS (Million Instructions Per Second), which allows for rapid data processing and real - time response in time - critical applications.
- **DSP Capabilities**: The integrated DSP engine provides dedicated hardware for performing digital signal processing operations such as multiply - accumulate (MAC) operations. These operations are fundamental in applications like audio processing, motor control, and sensor signal conditioning. The DSP capabilities significantly enhance the efficiency of these operations compared to traditional microcontroller architectures.
### 2.2 Memory
- **Flash Program Memory**: The series comes with 64 KB of in - system programmable flash memory. This large amount of memory allows developers to store complex application code, including control algorithms, user interfaces, and communication protocols. The flash memory is also non - volatile, which means that the program code is retained even when the power is turned off.
- **Data Memory**: It features 4 KB of RAM (Random Access Memory) for storing variables, intermediate results, and data buffers during program execution. The sufficient data memory capacity ensures smooth operation of applications that require data storage and manipulation.
### 2.3 Peripherals
- **Analog - to - Digital Converters (ADCs)**: The DSPIC33FJ64GP204 - E/ML is equipped with multiple ADC channels. These ADCs have a high resolution (up to 12 - bit) and a fast conversion rate, enabling accurate and rapid sampling of analog signals. This is crucial in applications such as sensor data acquisition, where analog signals from sensors need to be converted into digital values for further processing.
- **Pulse Width Modulation (PWM) Modules**: There are several PWM modules available, which are essential for motor control applications. The PWM modules can generate high - frequency and precise pulse width modulated signals, allowing for accurate control of motor speed, torque, and direction.
- **Communication Interfaces**: The microcontroller supports a variety of communication interfaces, including SPI (Serial Peripheral Interface), I²C (Inter - Integrated Circuit), and UART (Universal Asynchronous Receiver - Transmitter). These interfaces enable seamless communication with other devices such as sensors, actuators, and external memory modules, facilitating the integration of the DSPIC33FJ64GP204 - E/ML into larger systems.
### 2.4 Low - Power Operation
- **Multiple Power Modes**: The product series offers multiple power - saving modes, including Sleep, Idle, and Doze modes. In Sleep mode, the microcontroller consumes minimal power while still retaining the contents of its memory. This feature is particularly useful in battery - powered applications, where power consumption needs to be minimized to extend the battery life.
## 3. Applications
### 3.1 Motor Control
- The combination of high - performance processing, PWM modules, and ADCs makes the DSPIC33FJ64GP204
Images for reference

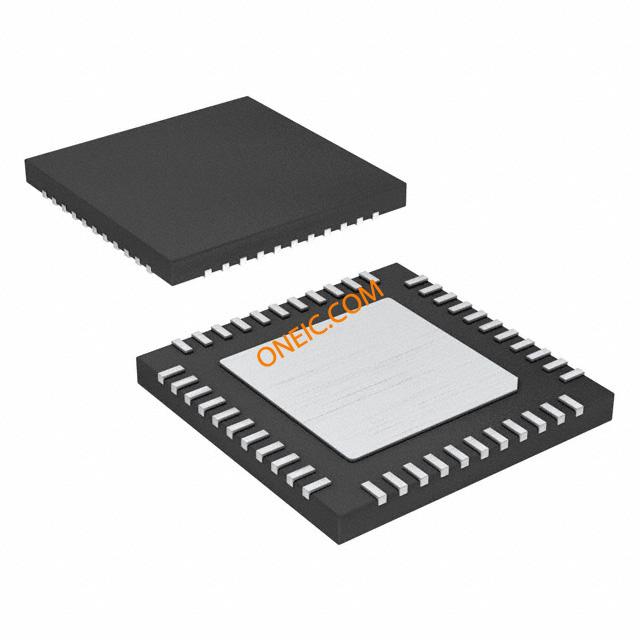

44-QFN Pkg

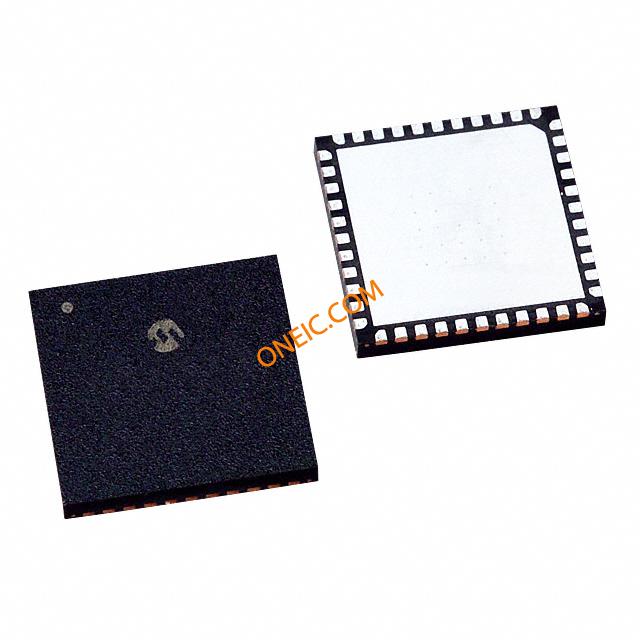

44-QFNExposed
