# Introduction to the DF1BZ - 2P - 2.5DSA Product Series

## 1. Overview
The DF1BZ - 2P - 2.5DSA product series represents a cutting - edge solution in the field of electrical connectors. These connectors are engineered with precision and innovation to meet the diverse and demanding requirements of modern electrical and electronic systems. Whether it's for industrial machinery, consumer electronics, or automotive applications, the DF1BZ - 2P - 2.5DSA series offers reliable and efficient connectivity.

## 2. Key Features

### 2.1 Pin Configuration
The "2P" in the product name indicates that this series of connectors has two pins. This simple yet practical pin configuration makes it suitable for applications that require the transmission of two electrical signals. It can be used for power supply circuits where a positive and a negative connection are needed, or for signal transmission in simple control circuits.

### 2.2 Pitch Size
The "2.5D" refers to the pitch size of the connector, which is 2.5mm. A relatively small pitch size allows for a more compact design of the overall electrical system. This is particularly beneficial in applications where space is limited, such as in portable electronic devices or densely packed circuit boards. The 2.5mm pitch also enables a higher density of connectors on a given area, facilitating the integration of multiple functions in a small space.

### 2.3 Solder - Type Design
The "SA" in the product code suggests a solder - type design. Solder - type connectors offer several advantages. Firstly, they provide a strong and stable electrical connection. The soldering process ensures low resistance between the connector and the circuit board, minimizing power loss and signal attenuation. Secondly, solder - type connectors are highly resistant to vibration and mechanical shock, making them suitable for use in harsh environments where the connectors may be subject to movement or impact.

### 2.4 High - Quality Materials
The DF1BZ - 2P - 2.5DSA series is constructed using high - quality materials. The housing is made of a durable plastic material that offers excellent insulation properties, protecting the electrical contacts from external interference and preventing short - circuits. The pins are made of a conductive metal with high conductivity and corrosion resistance, ensuring long - term reliability and stable performance.

## 3. Performance Specifications

### 3.1 Electrical Performance
- **Current Rating**: The connectors are designed to handle a specific amount of current. For the DF1BZ - 2P - 2.5DSA series, it can typically support a current rating of [X] amperes, which is sufficient for most low - to medium - power applications.
- **Voltage Rating**: They can withstand a maximum voltage of [X] volts, ensuring safe operation in various electrical environments.
- **Contact Resistance**: The contact resistance is kept at a very low level, typically in the range of [X] milliohms. This low resistance helps to maintain the integrity of the electrical signal and reduces power dissipation.

### 3.2 Mechanical Performance
- **Insertion and Withdrawal Force**: The connectors are designed with an appropriate insertion and withdrawal force. The insertion force is low enough to allow for easy installation, while the withdrawal force is sufficient to ensure a secure connection.
- **Mating Cycles**: They can withstand a large number of mating and unmating cycles, typically [X] cycles. This makes them suitable for applications where the connectors need to be frequently connected and disconnected.

## 4. Applications

### 4.1 Industrial Automation
In industrial automation systems, the DF1BZ - 2P - 2.5DSA connectors can be used for connecting sensors, actuators, and control modules. Their reliable performance

Images for reference

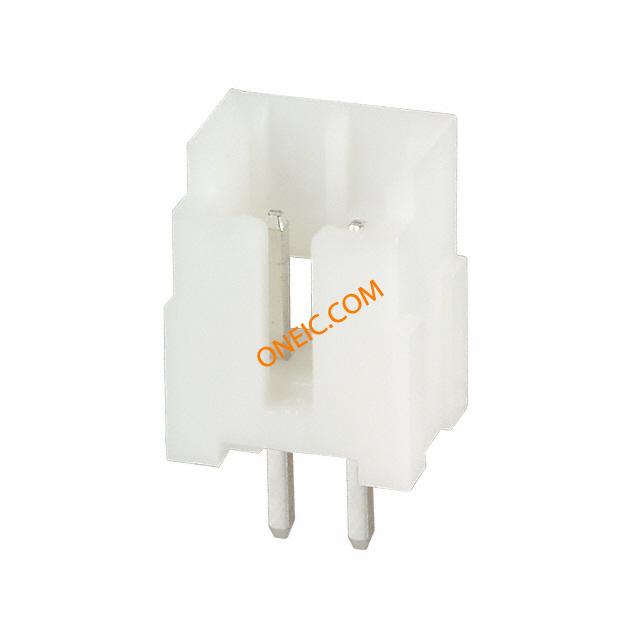

DF1B(Z)-2P-2.5DSA

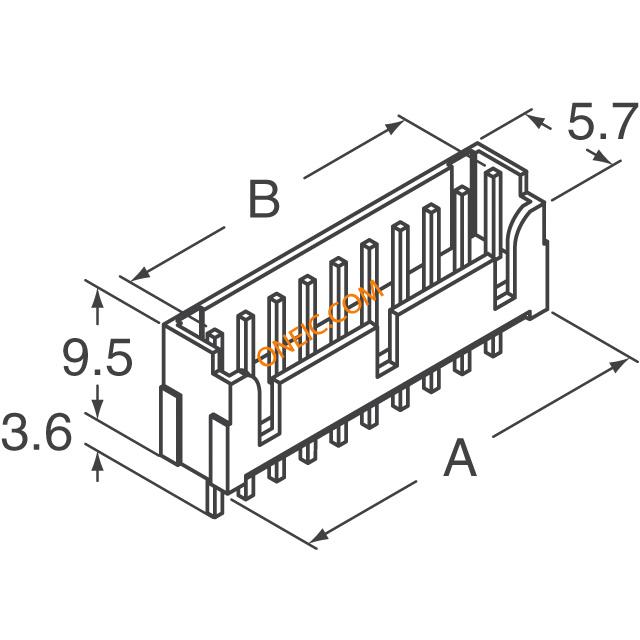

DF1B(Z)-2P-2.5DSA
