3.3V 4M-bit fast asynchronous SRAM chips in 36-pin SOJ format
Manufacturer: ['cypress', 'cypress-semiconductor']
# Introduction to the CY7C1049DV33 - 10VXIT Product Series
## 1. Overview
The CY7C1049DV33 - 10VXIT belongs to a high - performance static random - access memory (SRAM) product series developed by Cypress Semiconductor (now part of Infineon Technologies). This SRAM series is designed to meet the demanding requirements of various applications, offering fast access times, low power consumption, and high reliability.
## 2. Key Features
### 2.1 Memory Capacity
The CY7C1049DV33 - 10VXIT typically offers a significant memory capacity. It provides a large amount of storage space for data, which is crucial for applications that need to handle and store a substantial amount of information in real - time. This makes it suitable for use in systems where data buffering, caching, or high - speed data storage is required.
### 2.2 Fast Access Time
One of the standout features of this product series is its fast access time. With an access time of 10 ns, it can quickly retrieve and store data. This rapid access is essential for applications that demand high - speed data processing, such as networking equipment, high - performance computing systems, and real - time signal processing. In networking devices, for example, fast access to data stored in SRAM enables quick packet forwarding and routing, reducing latency and improving overall network performance.
### 2.3 Low Power Consumption
The CY7C1049DV33 - 10VXIT is designed with power efficiency in mind. It operates at a supply voltage of 3.3V, which helps to minimize power consumption. This is particularly important for battery - powered devices or systems where energy efficiency is a top priority. By consuming less power, the product not only reduces operating costs but also helps to extend the battery life of portable devices.
### 2.4 High - Speed Interface
It features a high - speed parallel interface that allows for efficient data transfer between the SRAM and the host system. The parallel interface enables multiple data bits to be transferred simultaneously, increasing the overall data transfer rate. This high - speed data transfer capability is beneficial for applications that require large amounts of data to be moved quickly, such as graphics processing units (GPUs) and digital signal processors (DSPs).
### 2.5 Wide Operating Temperature Range
The product series is designed to operate over a wide temperature range. It can function reliably in both industrial and commercial environments, from - 40°C to 85°C. This wide temperature tolerance makes it suitable for use in harsh conditions, such as automotive electronics, aerospace applications, and industrial control systems, where temperature variations can be significant.
## 3. Package and Pinout
The CY7C1049DV33 - 10VXIT is available in a specific package type, which is carefully designed to ensure proper electrical performance and mechanical stability. The package provides a convenient way to mount the SRAM on a printed circuit board (PCB). The pinout of the device is well - defined, with each pin having a specific function related to power supply, data input/output, address selection, and control signals. This standardized pinout simplifies the design process for engineers, allowing them to easily integrate the SRAM into their systems.
## 4. Applications
### 4.1 Networking Equipment
In networking devices such as routers, switches, and network interface cards (NICs), the CY7C1049DV33 - 10VXIT is used for data buffering and packet storage. Its fast access time and high - speed data transfer capabilities enable these devices to handle large volumes of network traffic efficiently, reducing packet loss and improving network throughput.
### 4.2 Industrial

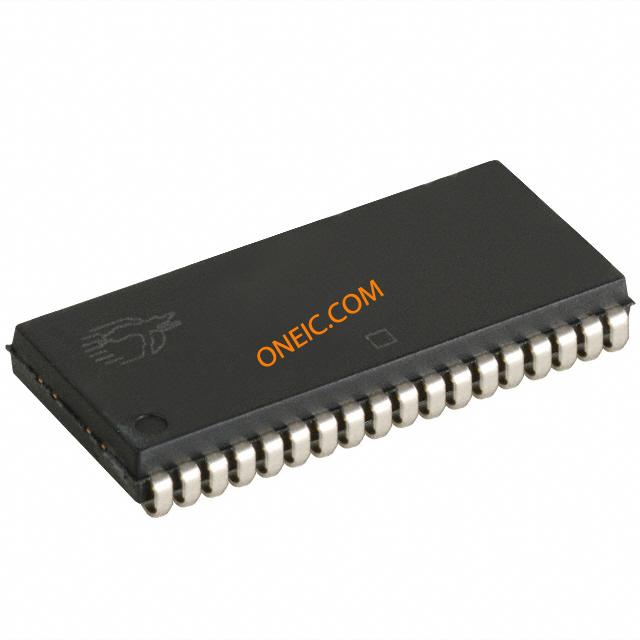

36-SOJ Pkg
