CSD19532Q5B

High-power N-channel MOSFETs for efficient energy management

Manufacturer: ti

series introduction

# Introduction to the CSD19532Q5B Product Series

## Overview
The CSD19532Q5B product series represents a cutting - edge line of power MOSFETs (Metal - Oxide - Semiconductor Field - Effect Transistors) engineered to meet the diverse and demanding requirements of modern electronic applications. These MOSFETs are designed with a focus on high performance, reliability, and efficiency, making them an ideal choice for a wide range of power management and switching applications.

## Key Features

### Low On - Resistance (RDS(on))
One of the standout features of the CSD19532Q5B series is its extremely low on - resistance. Low RDS(on) values translate to reduced power losses during conduction. This is crucial in power - hungry applications as it helps to minimize heat generation, improve overall system efficiency, and increase battery life in portable devices. For example, in a high - current DC - DC converter, the low RDS(on) of these MOSFETs ensures that less power is wasted as heat, allowing the converter to operate more efficiently and deliver more power to the load.

### High Current - Handling Capability
The MOSFETs in the CSD19532Q5B series are capable of handling high currents. This makes them suitable for applications that require the switching of large amounts of power, such as motor control circuits, power supplies, and battery charging systems. Their ability to handle high currents without significant degradation in performance ensures stable and reliable operation even under heavy load conditions.

### Fast Switching Speeds
Fast switching speeds are essential for applications where rapid changes in current or voltage are required. The CSD19532Q5B series offers excellent switching characteristics, enabling quick turn - on and turn - off times. This is beneficial in high - frequency switching applications, such as switching power supplies, where fast switching reduces switching losses and improves the overall efficiency of the power conversion process.

### Low Gate Charge (Qg)
The low gate charge of these MOSFETs is another important feature. A low Qg value means that less energy is required to drive the gate of the MOSFET, resulting in reduced gate drive losses. This is particularly advantageous in applications where power consumption needs to be minimized, such as in battery - powered devices. Additionally, low gate charge allows for faster switching transitions, further enhancing the performance of the MOSFET in high - frequency applications.

### Robust Packaging
The CSD19532Q5B series comes in a robust and compact package. The package design provides good thermal performance, allowing for efficient heat dissipation from the MOSFET. This helps to maintain the device's temperature within safe operating limits, even under high - power conditions. The compact size of the package also makes it suitable for space - constrained applications, enabling designers to create more compact and integrated electronic systems.

## Applications

### Power Supplies
In power supply applications, the CSD19532Q5B series can be used in both AC - DC and DC - DC converters. Their low on - resistance and fast switching speeds contribute to high - efficiency power conversion, reducing energy losses and improving the overall performance of the power supply. They can handle the high currents typically encountered in power supplies, ensuring stable and reliable operation.

### Motor Control
Motor control circuits require MOSFETs that can handle high currents and provide fast switching. The CSD19532Q5B series is well - suited for this application, as it can efficiently switch the power to the motor windings, enabling precise control of the motor's speed and torque. Their low on - resistance helps to minimize power losses in the motor control circuit, improving the overall efficiency of the motor system.

### Battery Management Systems
Battery management systems (BMS) are crucial for the safe and efficient operation of batteries

Images for reference

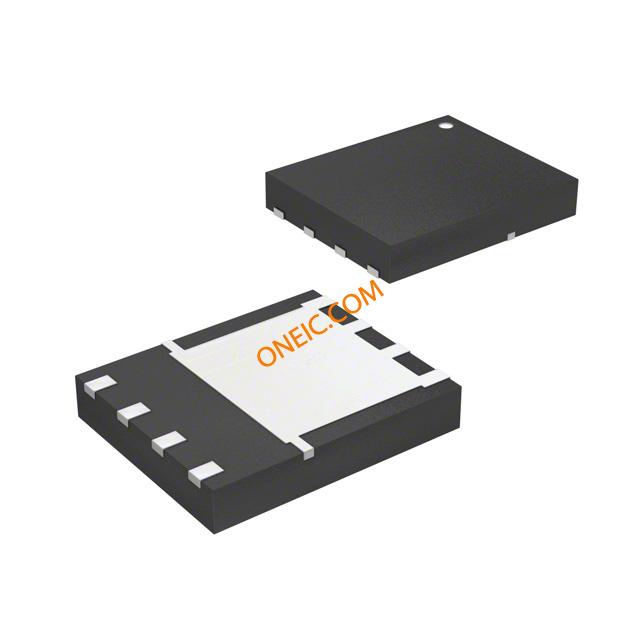

8-VSON (5x6)
