CSD16301Q2

N-channel power MOSFETs for efficient electronic circuit control

Manufacturer: ti

series introduction

# Introduction to the CSD16301Q2 Product Series

## Overview
The CSD16301Q2 product series represents a cutting - edge line of power MOSFETs (Metal - Oxide - Semiconductor Field - Effect Transistors) engineered to meet the diverse and demanding requirements of modern electronic applications. These MOSFETs are designed with a focus on high performance, reliability, and efficiency, making them an ideal choice for a wide range of power management and switching applications.

## Key Features

### 1. Low On - Resistance (RDS(on))
One of the standout features of the CSD16301Q2 series is its extremely low on - resistance. Low RDS(on) is crucial as it minimizes power losses during conduction. When the MOSFET is in the on - state, a lower RDS(on) value means less heat is generated, which in turn improves the overall efficiency of the circuit. This is particularly important in high - power applications where even small reductions in power loss can lead to significant energy savings and improved system performance.

### 2. High Current - Handling Capability
The MOSFETs in the CSD16301Q2 series are capable of handling high currents. This makes them suitable for applications that require the switching of large amounts of power, such as power supplies, motor control circuits, and battery management systems. The high current - handling capacity ensures that the MOSFETs can operate reliably under heavy load conditions without experiencing excessive voltage drops or overheating.

### 3. Fast Switching Speed
Fast switching speed is another key advantage of the CSD16301Q2 series. In switching applications, such as DC - DC converters, a fast - switching MOSFET can reduce the time during which the device is in the transition state between on and off. This results in reduced switching losses and improved efficiency. The fast switching characteristics also enable higher - frequency operation, which can lead to smaller and more compact circuit designs.

### 4. Low Gate Charge (Qg)
The low gate charge of the CSD16301Q2 MOSFETs is beneficial for reducing the power required to drive the gate. A lower gate charge means that less energy is needed to switch the MOSFET on and off, which can lead to reduced driver power consumption. This is especially important in battery - powered applications where power efficiency is a top priority.

### 5. Robust Packaging
The CSD16301Q2 series comes in a robust and compact package. The packaging is designed to provide good thermal performance, allowing for efficient heat dissipation from the MOSFET. This helps to maintain the device's reliability and performance even under high - temperature operating conditions. Additionally, the compact size of the package makes it suitable for space - constrained applications.

## Applications

### 1. Power Supplies
In power supply applications, the CSD16301Q2 series can be used in both AC - DC and DC - DC converters. In AC - DC converters, the MOSFETs can be used for rectification and power factor correction. In DC - DC converters, their low on - resistance and fast switching speed contribute to high - efficiency power conversion, enabling the design of power supplies with high power density and low energy consumption.

### 2. Motor Control
Motor control circuits require MOSFETs that can handle high currents and switch quickly. The CSD16301Q2 series is well - suited for this application, as it can efficiently control the power flow to the motor. Whether it's a brushed DC motor, a brushless DC motor, or a stepper motor, these MOSFETs can provide precise control and reliable operation.

### 3. Battery Management Systems
Battery management systems are responsible for monitoring and controlling the charging and discharging of batteries

Images for reference

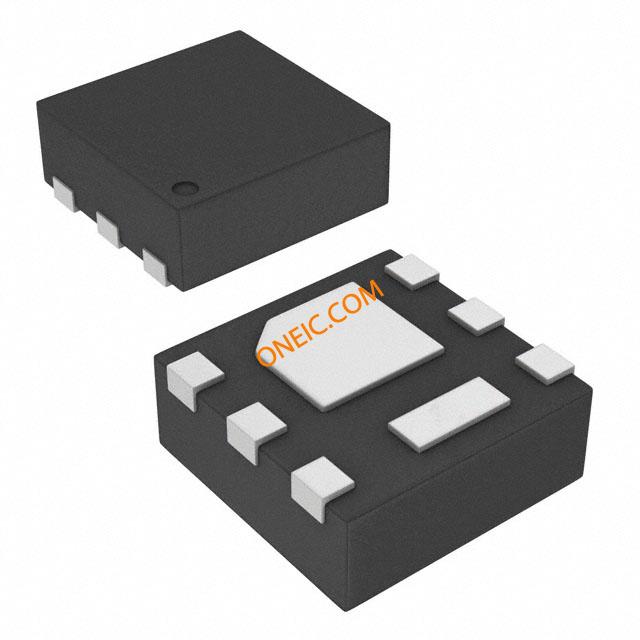

CSD-6-SON Pkg

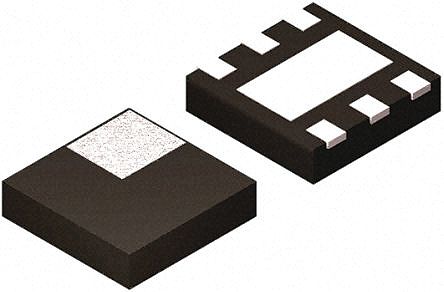

CSD-6-SON Pkg
