series introduction

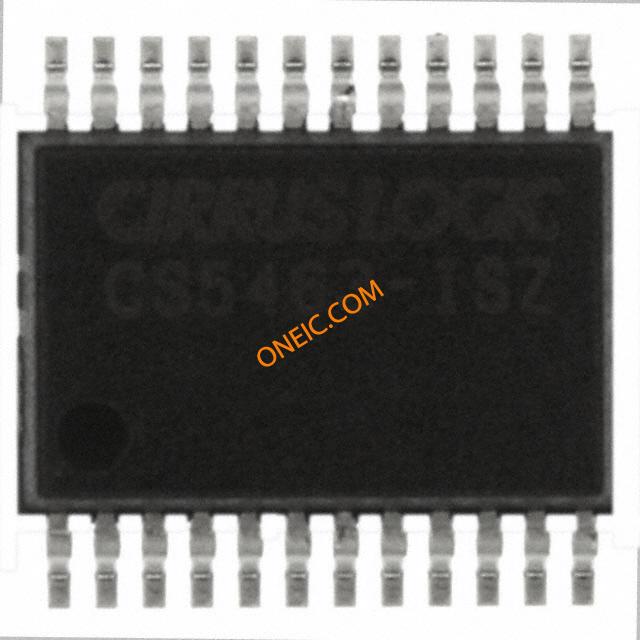

The CS5463 series is a cutting-edge family of precision energy measurement integrated circuits (ICs) designed for high-performance metering applications. This series excels in providing accurate measurements of both voltage and current, making it ideal for a range of applications, including smart grid technology, energy monitoring systems, and industrial automation. The CS5463 series incorporates advanced analog signal processing techniques, enabling it to achieve high accuracy and low power consumption, which are crucial for energy measurement devices.

Key features of the CS5463 series include its ability to measure active, reactive, and apparent power, as well as energy consumption across a wide dynamic range. The devices utilize a high-resolution 24-bit analog-to-digital converter (ADC) that provides exceptional measurement precision, ensuring that energy data is captured with minimal error. Additionally, the CS5463 series supports a variety of communication interfaces, such as SPI, allowing for easy integration into existing systems and facilitating real-time data acquisition and monitoring.

The design characteristics of the CS5463 series reflect a commitment to efficiency and versatility. With a compact package size and low-profile footprint, these ICs can be seamlessly integrated into various PCB layouts, making them suitable for both new designs and retrofitting existing systems. The integrated temperature compensation feature ensures that measurement accuracy is maintained across a broad temperature range, enhancing the reliability of the device under diverse operating conditions.

Typical applications of the CS5463 series span various industries, including home automation, electric vehicle charging stations, and renewable energy systems like solar inverters. In smart meters, these ICs enable utilities to monitor energy consumption accurately, facilitating demand response initiatives and energy efficiency programs. Furthermore, their capability to measure power quality parameters makes them invaluable in industrial settings, where maintaining optimal energy usage is critical for operational efficiency.

In summary, the CS5463 series stands out as a robust solution for precision energy measurement, combining high accuracy, low power consumption, and flexible integration options to meet the evolving demands of modern energy management systems.
