CRCW060310R0JNEAHP

Compact thick film resistors for high-power electronic circuits

Manufacturer: vishay

series introduction

# Introduction to the CRCW060310R0JNEAHP Product Series

## 1. Overview
The CRCW060310R0JNEAHP belongs to a specific series of surface - mount resistors. These resistors are crucial components in modern electronic circuits, playing a fundamental role in controlling current flow, dividing voltages, and terminating signals. The "CRCW" is the product family code, "0603" indicates the package size, "10R0" represents the resistance value, and the subsequent characters denote specific electrical and manufacturing - related parameters.

## 2. Package Size (0603)
### Physical Dimensions
The 0603 package is a widely used standard in the electronics industry. It has a length of approximately 1.6 mm and a width of about 0.8 mm. This relatively small size makes it suitable for applications where space is at a premium, such as in mobile devices, wearable electronics, and small - form - factor printed circuit boards (PCBs).
### Mounting Advantages
The surface - mount design of the 0603 package allows for automated assembly processes. Pick - and - place machines can quickly and accurately position these resistors on the PCB, which significantly reduces production time and cost compared to through - hole components. Additionally, the low profile of the 0603 package helps in minimizing the overall height of the electronic device, contributing to a more compact and sleek design.

## 3. Resistance Value (10R0)
### Meaning
The "10R0" notation indicates a resistance value of 10 ohms. Resistance is a measure of how much a component opposes the flow of electric current. In a circuit, a 10 - ohm resistor can be used in various ways, such as limiting the current flowing through an LED to prevent it from burning out, or in a voltage - divider circuit to obtain a specific output voltage.
### Tolerance
The resistor in the CRCW060310R0JNEAHP series typically has a specified tolerance. A common tolerance for this type of resistor might be ± 5%. This means that the actual resistance value of the resistor can vary within 5% of the nominal 10 - ohm value. For example, the actual resistance could range from 9.5 ohms to 10.5 ohms. The tolerance is an important factor in circuit design, as it can affect the performance and accuracy of the overall circuit.

## 4. Electrical Characteristics
### Power Rating
The power rating of the CRCW060310R0JNEAHP resistor is an important parameter. It indicates the maximum amount of power that the resistor can safely dissipate without being damaged. For a 0603 - sized resistor, the power rating is usually in the range of 1/16 watt to 1/10 watt. When designing a circuit, it is essential to ensure that the power dissipated by the resistor under normal operating conditions is within its power - rating limit. Otherwise, the resistor may overheat, leading to a change in its resistance value or even complete failure.
### Temperature Coefficient
The temperature coefficient of resistance (TCR) is another key electrical characteristic. It describes how the resistance of the resistor changes with temperature. A low TCR value indicates that the resistance remains relatively stable over a wide temperature range. For the CRCW060310R0JNEAHP series, a typical TCR value might be in the order of ± 100 ppm/°C. This means that for every 1°C change in temperature, the resistance will change by approximately 100 parts per million of its nominal value.

## 5. Material and Construction
### Resistive Element

Images for reference

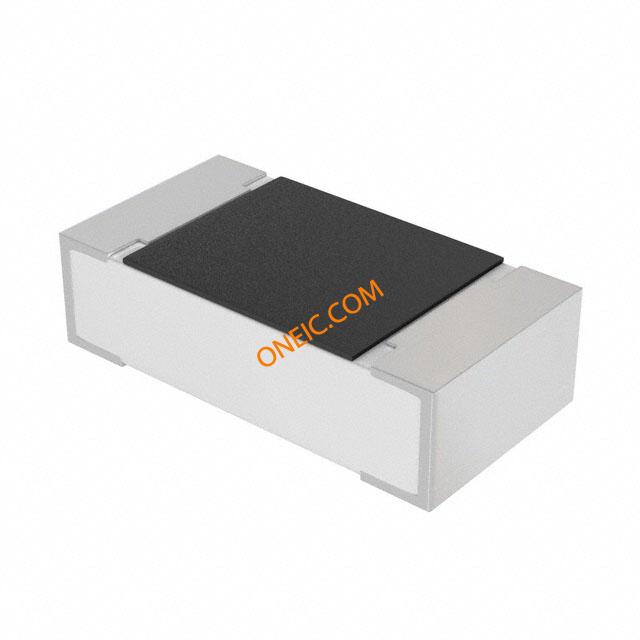

CRCW-HP-0603

CRCW-HP-0603

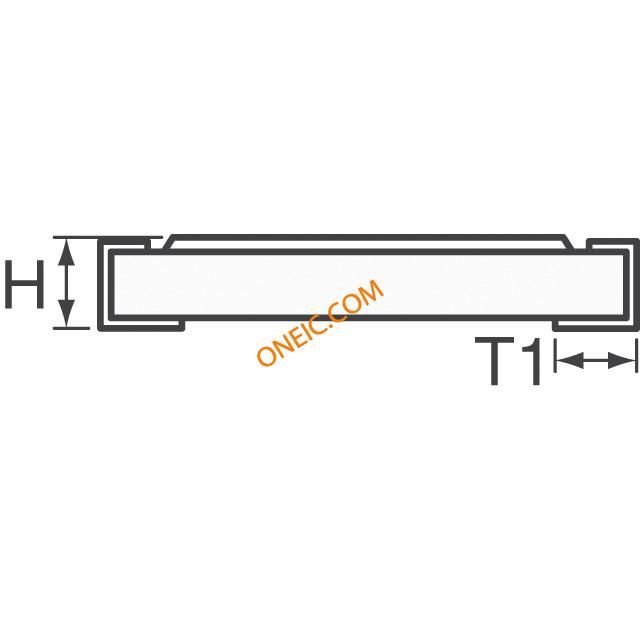

CRCW HP 402, 603, 805, 1206, 2010, 2512 Side

CRCW HP 402, 603, 805, 1206, 2010, 2512 Side

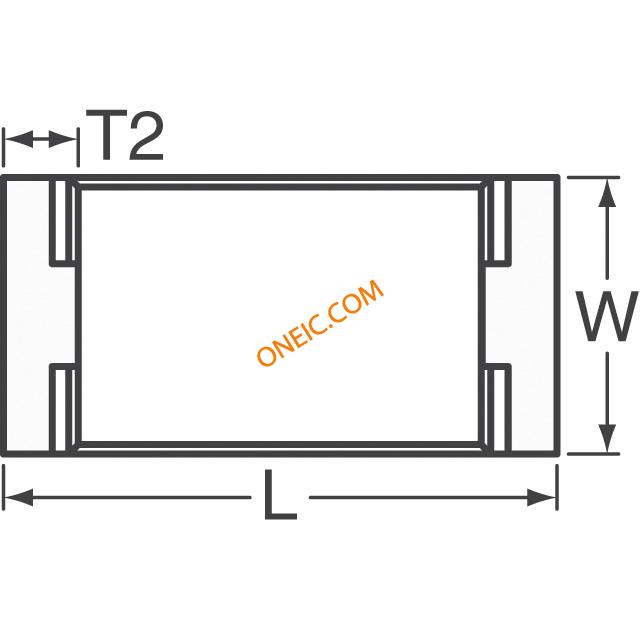

CRCW-HP-402, 603, 805, 1206, 2010, 2512 Top
