CGA9N3X7R2E
Multilayer ceramic capacitors with various specs
Manufacturer： tdk
series introduction
The CGA9N3X7R2E Series is a distinguished line of surface-mount multilayer ceramic capacitors (MLCCs) designed to meet the rigorous demands of modern electronic applications. These capacitors are characterized by their use of high-quality X7R dielectric material, which ensures stable capacitance over a wide temperature range of -55°C to +125°C, with a tolerance of ±15%. This makes the CGA9N3X7R2E Series particularly suitable for environments where temperature fluctuations are prevalent, ensuring consistent performance under varying operational conditions.
One of the standout features of the CGA9N3X7R2E Series is its exceptional volumetric efficiency, allowing for higher capacitance values in compact package sizes. The series offers a comprehensive range of capacitance values and voltage ratings, catering to diverse application needs. The capacitors are particularly adept at handling high-frequency signals, making them ideal for use in decoupling, filtering, and bypass applications in high-speed circuits.
The design of the CGA9N3X7R2E capacitors focuses on reliability and performance, with a robust construction that minimizes the risk of mechanical stress and failure. This durability is essential for applications in sectors that demand high reliability, such as telecommunications, automotive electronics, and industrial automation. The capacitors are also compliant with various industry standards, ensuring compatibility with a wide array of devices.
In terms of typical applications, the CGA9N3X7R2E Series finds its place in smartphones, tablets, and other portable devices where space is a premium. They are also widely employed in the automotive industry for electronic control units (ECUs) and infotainment systems, where their performance contributes to the overall efficiency and functionality of the vehicle's electronic architecture. Additionally, these capacitors are utilized in industrial equipment, where their reliability translates into reduced maintenance and longer operational life.
Overall, the CGA9N3X7R2E Series represents a blend of advanced technology, compact design, and versatile application potential, making it a preferred choice for engineers and designers looking to enhance the performance and reliability of their electronic systems.

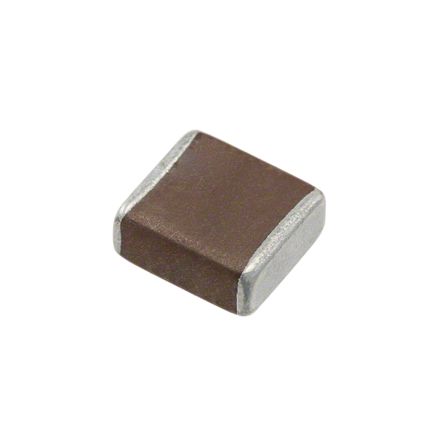

Images for reference

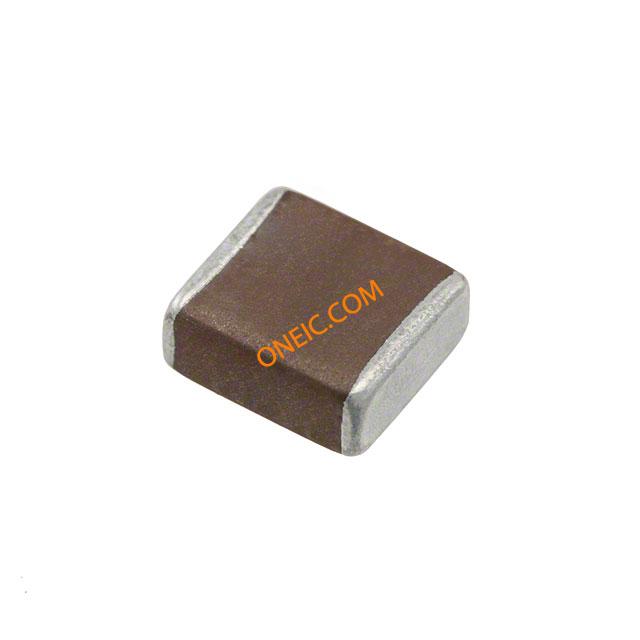

CGA57-SERIES
Image Preview
Image Preview
