CGA6M2X7R1
Multilayer ceramic capacitors for various voltages
Manufacturer： tdk
series introduction
The CGA6M2X7R1 Series represents a robust line of surface-mount ceramic capacitors engineered for high-performance applications, characterized by their exceptional reliability and versatility. Utilizing a dielectric material classified as X7R, these capacitors ensure stable capacitance values within ±15% across a temperature range of -55°C to +125°C. This broad operational range makes the CGA6M2X7R1 Series particularly well-suited for environments that experience significant temperature fluctuations, ensuring consistent performance even in the most challenging conditions.
Designed with a focus on compactness and efficiency, the CGA6M2X7R1 Series features various capacitance values and voltage ratings, catering to a wide array of circuit requirements. The capacitors are housed in a standard 0603 package size (1.6 mm x 0.8 mm), making them ideal for applications where space is at a premium. This small footprint allows for the integration of multiple capacitors in dense circuit layouts, such as those found in advanced consumer electronics, smartphones, tablets, and wearables, where minimizing board size without sacrificing performance is critical.
The CGA6M2X7R1 Series capacitors excel in applications involving decoupling, filtering, and energy storage, providing essential support in high-frequency and high-speed environments. Their reliable performance makes them invaluable in automotive electronics, industrial machinery, and telecommunications systems. The series is particularly favored in circuits that demand low equivalent series resistance (ESR) and high capacitance stability, ensuring optimal functionality and longevity of electronic devices.
In summary, the CGA6M2X7R1 Series is a testament to advanced materials engineering and design, delivering high capacitance values and impressive thermal stability in a compact package. These capacitors are indispensable for modern electronic applications, providing manufacturers with the reliability and performance needed to meet the demands of today's fast-paced technological landscape.
Images for reference

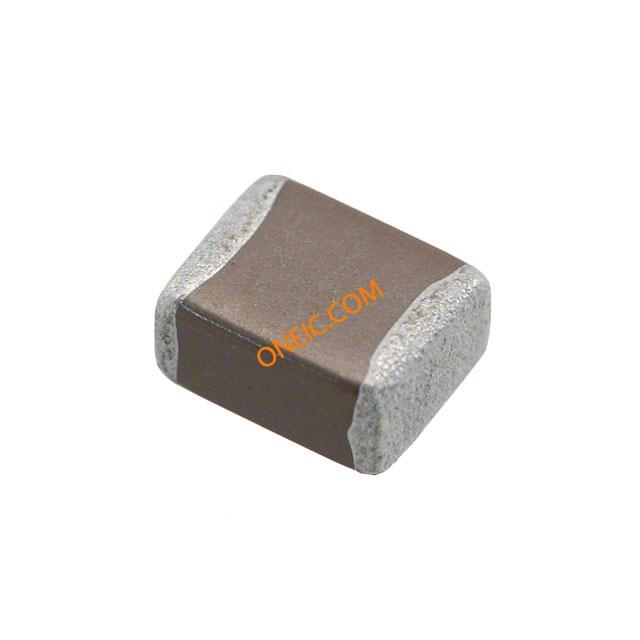

CGA6-SERIES, 1210

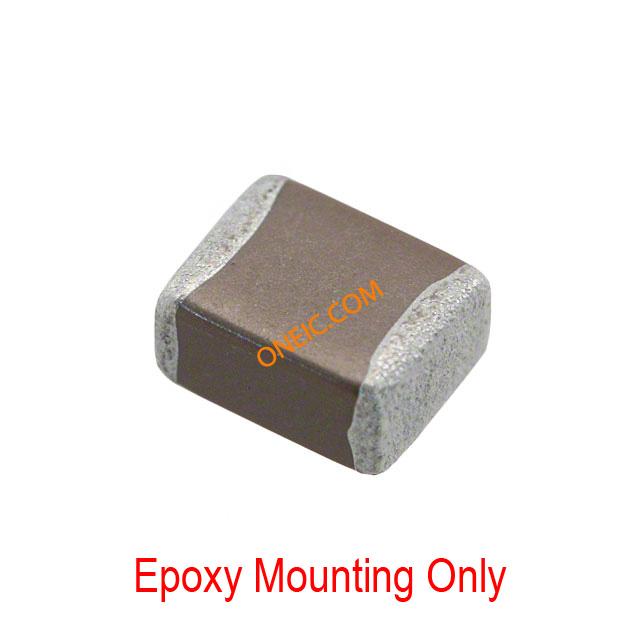

CGA322 Epoxy Series
Image Preview
