CGA5K4X7
Multilayer ceramic capacitors for various uses
Manufacturer： tdk
series introduction
The CGA5K4X7 Series is a distinguished lineup of multilayer ceramic capacitors (MLCCs) renowned for their high capacitance values and exceptional volumetric efficiency, making them ideal for a wide range of electronic applications. Engineered with a robust X7R dielectric material, these capacitors deliver stable capacitance values over a temperature range of -55°C to +125°C, with a tolerance of ±15%. This characteristic ensures reliable performance in challenging thermal environments, making the CGA5K4X7 Series suitable for both consumer and industrial electronics.
One of the standout features of the CGA5K4X7 Series is its compact design, allowing for space-saving implementations in high-density circuit boards. The capacitors are available in various capacitance values, enabling designers to select the optimal component for their specific applications, whether it be for decoupling, filtering, or energy storage purposes. The series is particularly beneficial in applications where real estate on the PCB is limited, such as in mobile devices, IoT gadgets, and automotive electronics.
In terms of design characteristics, the CGA5K4X7 Series is optimized for reliability and longevity, featuring a robust construction that minimizes the risk of cracking and dielectric breakdown under mechanical stress or high voltage conditions. These capacitors are also designed to withstand high-frequency signals, making them suitable for RF applications and other scenarios requiring quick response times.
Typical applications for the CGA5K4X7 Series include power supply circuits, audio equipment, telecommunications devices, and consumer electronics like smartphones and tablets. Additionally, they are increasingly adopted in automotive systems, where reliability and performance are critical due to stringent safety standards and varying environmental conditions.
Overall, the CGA5K4X7 Series represents a perfect blend of performance, reliability, and compactness, catering to the evolving demands of modern electronic design and ensuring a seamless integration into a variety of applications across multiple industries.
Images for reference

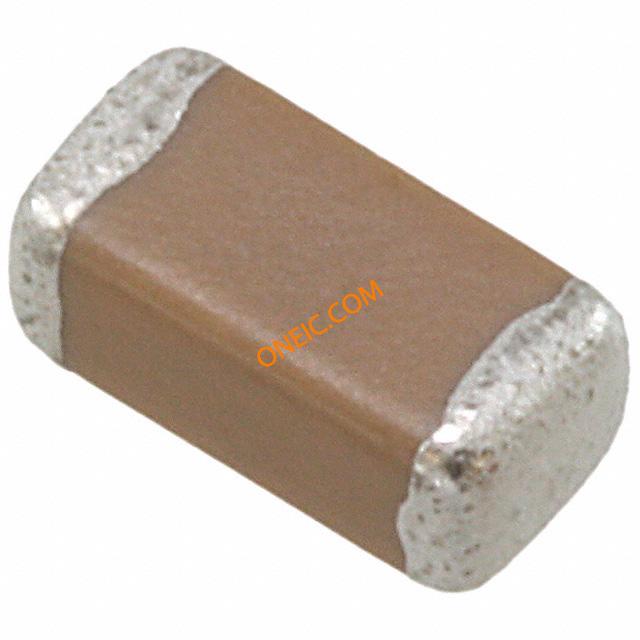

CGA5K

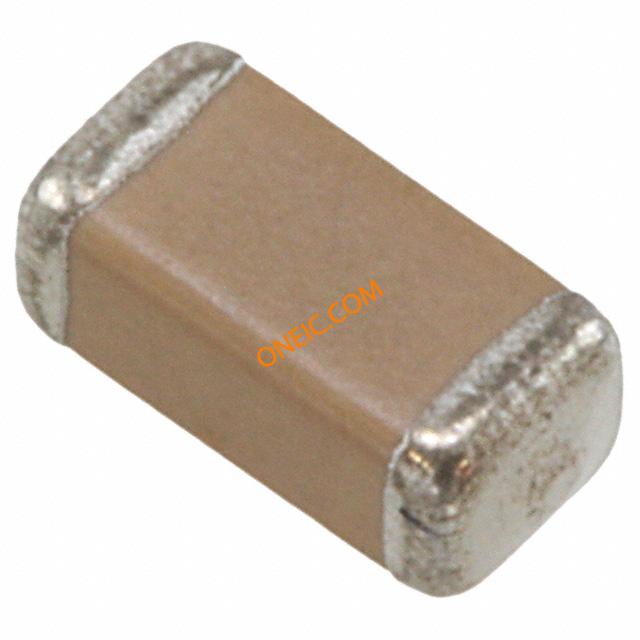

CGA5K4X7R2J223K130AE
CGA5H
