CGA3E2X7R1E
Multilayer ceramic capacitors for SMD/SMT, 0603
Manufacturer： tdk
series introduction
The CGA3E2X7R1E Series is a state-of-the-art collection of surface-mount multilayer ceramic capacitors (MLCCs) engineered for high-performance applications in a variety of electronic devices. This series is distinguished by its use of advanced X7R dielectric material, which ensures stable capacitance values that exhibit minimal variation over a wide temperature range of -55°C to +125°C. This characteristic is essential for applications that demand reliable performance under fluctuating environmental conditions, making the CGA3E2X7R1E an ideal choice for both consumer and industrial electronics.
One of the standout features of the CGA3E2X7R1E Series is its compact 1206 package size (3.2 mm x 1.6 mm), which is designed to meet the needs of modern compact circuit designs. This small footprint allows for more efficient use of board space, enabling engineers to create smaller, more integrated devices without compromising performance. The series offers a wide range of capacitance values, catering to various application requirements, from decoupling and filtering to energy storage.
The CGA3E2X7R1E capacitors are particularly well-suited for applications in telecommunications, automotive electronics, and consumer gadgets, where reliability and longevity are paramount. Their robustness against voltage fluctuations and temperature variations makes them ideal for critical functions such as power supply decoupling and signal integrity maintenance in high-frequency circuits. Additionally, these capacitors can be utilized in smart appliances, medical devices, and industrial automation systems, where performance consistency is crucial.
In summary, the CGA3E2X7R1E Series represents a perfect balance of miniaturization, reliability, and versatility. By integrating these MLCCs into your designs, you can enhance the performance of your electronic systems while ensuring compliance with the stringent demands of today’s technology landscape. Whether for consumer electronics or sophisticated industrial applications, the CGA3E2X7R1E capacitors deliver exceptional performance where it matters most.
Images for reference

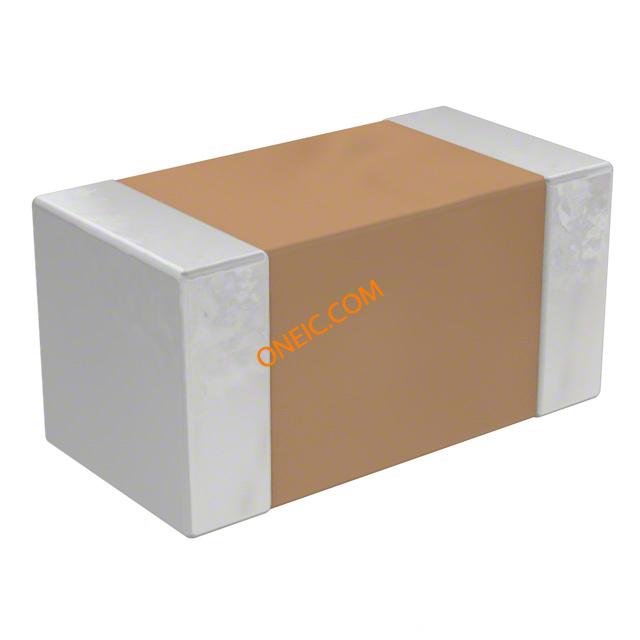

CGA Series 0603

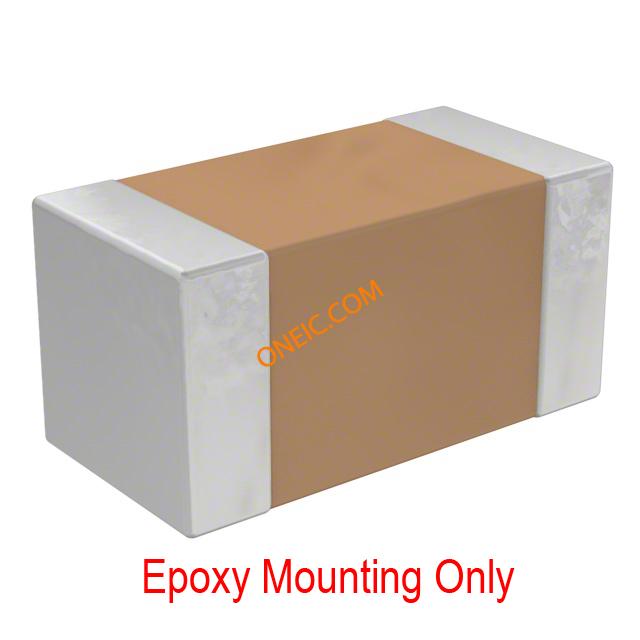

CGA Epoxy Series 0603
