CGA2B3X7R1H104K050BD

Compact 50V multilayer ceramic capacitors for electronic circuits

Manufacturer: tdk

series introduction

# Introduction to the CGA2B3X7R1H104K050BD Product Series

## 1. Overview
The CGA2B3X7R1H104K050BD product series belongs to the category of ceramic capacitors. These capacitors are essential passive electronic components widely used in various electronic circuits for functions such as energy storage, filtering, coupling, and decoupling. Their design and performance characteristics make them suitable for a broad range of applications in the electronics industry.

## 2. Product Naming Convention
Let's break down the product code CGA2B3X7R1H104K050BD to understand its key features:
- **CGA**: This is likely a product family or series identifier specific to the manufacturer. It represents a particular line of ceramic capacitors with certain design and performance characteristics.
- **2B3**: These characters may denote specific package dimensions, construction details, or other physical attributes of the capacitor. Different combinations in this part of the code can indicate variations in size, shape, or mounting style.
- **X7R**: This is the dielectric type. X7R is a popular dielectric material for ceramic capacitors. It offers a good balance between capacitance stability, temperature coefficient, and cost. X7R capacitors have a temperature range of -55°C to +125°C and a capacitance change of ±15% over this temperature range. This makes them suitable for applications where moderate temperature stability is required.
- **1H**: This might represent the rated voltage of the capacitor. In the capacitor industry, certain codes are used to denote voltage ratings. For example, “1H” could correspond to a specific voltage value, which is an important parameter as it determines the maximum voltage the capacitor can safely withstand without breakdown.
- **104**: This is the capacitance value code. In the standard capacitor coding system, the first two digits are the significant figures, and the third digit is the multiplier. So, “104” means 10 followed by 4 zeros, which is equivalent to 100,000 picofarads or 0.1 microfarads (μF).
- **K**: This indicates the tolerance of the capacitance value. “K” stands for a tolerance of ±10%. It means that the actual capacitance of the capacitor can vary within ±10% of the nominal value (0.1 μF in this case).
- **050**: This could be related to additional specifications such as the size of the capacitor in a particular unit of measurement or a specific manufacturing batch code.
- **BD**: These characters may be used by the manufacturer for internal tracking, version control, or to indicate specific features or options associated with the product.

## 3. Electrical Characteristics
### Capacitance
The nominal capacitance of the CGA2B3X7R1H104K050BD series is 0.1 μF with a tolerance of ±10%. This means that the actual capacitance of the capacitor can range from 0.09 μF to 0.11 μF. The capacitance value is crucial as it determines the amount of charge the capacitor can store and its ability to interact with other components in the circuit.

### Voltage Rating
As indicated by the “1H” code, the capacitor has a specific rated voltage. This voltage rating is the maximum DC or AC voltage that the capacitor can handle without experiencing electrical breakdown. Exceeding the rated voltage can lead to permanent damage to the capacitor and potentially cause malfunctions in the circuit.

### Temperature Coefficient
Thanks to the X7R dielectric, the CGA2B3X7R1H104K050BD series has a relatively stable capacitance over a wide

Images for reference

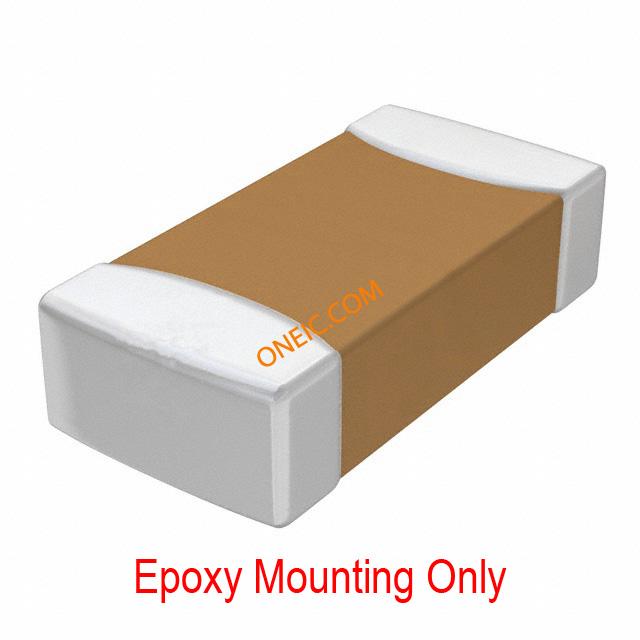

X7R-0402 Epoxy Series
