CGA2B1X5R1C
Multilayer ceramic capacitors in 0402 form factor
Manufacturer： tdk
series introduction
The CGA2B1X5R1C Series is an advanced family of surface-mount multilayer ceramic capacitors (MLCCs) engineered to meet the growing demands of high-performance electronic applications. These capacitors leverage the reliable X5R dielectric material, which ensures that the capacitance remains stable within ±15% across a temperature spectrum of -55°C to +85°C. This wide operational range makes the CGA2B1X5R1C Series particularly suitable for environments where temperature fluctuations are common, ensuring consistent performance and reliability.
One of the standout features of the CGA2B1X5R1C Series is its compact 0402 package size (1.0 mm x 0.5 mm), which allows for efficient space utilization in modern circuit designs. This miniaturization is crucial for applications in consumer electronics, automotive systems, and industrial machinery, where PCB real estate is often at a premium. The series offers a variety of capacitance values and voltage ratings, enabling designers to select the perfect component for their specific needs, whether for decoupling, filtering, or energy storage purposes.
The design characteristics of the CGA2B1X5R1C Series also include low equivalent series resistance (ESR) and low equivalent series inductance (ESL), which enhance the capacitors’ performance in high-frequency applications. This capability makes them ideal for use in RF circuits, power management, and other high-speed applications that demand quick charge and discharge cycles.
Typical applications for the CGA2B1X5R1C Series extend across a wide array of industries. In consumer electronics, they are commonly found in smartphones, tablets, and wearables, where reliability and performance are paramount. In automotive applications, these capacitors contribute to the functionality of advanced driver-assistance systems (ADAS) and infotainment units. Additionally, industrial equipment utilizes the CGA2B1X5R1C capacitors in automation systems and control circuits, benefiting from their durability and stability under varying operational conditions.
In summary, the CGA2B1X5R1C Series represents a fusion of advanced technology, reliability, and versatility, making it an excellent choice for engineers and designers aiming to push the boundaries of electronic design in today's fast-paced technological landscape.
Images for reference

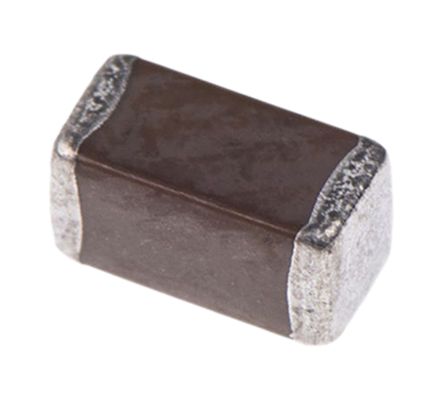

CGA2B Series-0402
