CDRH8D58
Power inductors in various inductance values
Manufacturer： sumida-corporation
series introduction
The CDRH8D58 Series is a distinguished line of surface-mount power inductors engineered to deliver exceptional performance in compact electronic devices. Characterized by their robust construction and high current handling capabilities, these inductors are designed to meet the demanding specifications of modern applications, making them a pivotal component in a variety of industries.
One of the standout features of the CDRH8D58 Series is its impressive inductance range, which caters to a broad spectrum of circuit requirements. These inductors utilize a ferrite core material that not only enhances their efficiency but also minimizes core losses, ensuring optimal performance under varying load conditions. With a compact footprint of just 8 mm x 8 mm and a low profile, the CDRH8D58 Series is perfect for space-constrained applications, allowing engineers to maximize PCB real estate without compromising on performance.
The design characteristics of the CDRH8D58 Series further emphasize its versatility. The inductors are available in several inductance values and current ratings, providing flexibility to designers in tailoring their circuit solutions. Additionally, the series features a temperature range suitable for various environments, ensuring reliable operation even in harsh conditions. With excellent DC resistance values, these inductors facilitate efficient power conversion, thus enhancing the overall energy efficiency of electronic systems.
Ideal use cases for the CDRH8D58 Series include power management circuits, DC-DC converters, and energy storage systems. They are commonly found in consumer electronics, such as smartphones, tablets, and laptops, where they play a critical role in voltage regulation and noise suppression. Furthermore, the CDRH8D58 inductors are well-suited for automotive applications, providing reliable performance in powertrain control modules and infotainment systems.
In summary, the CDRH8D58 Series stands out as a reliable, high-performance power inductor solution for engineers seeking to optimize their designs in various applications. Its combination of compact size, versatile inductance options, and robust performance ensures it meets the needs of today's advanced electronic systems.
Images for reference

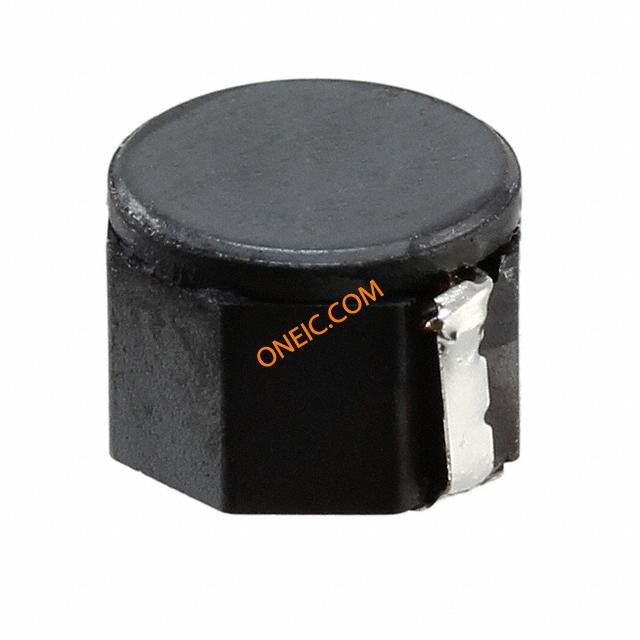

CDRH8D58/LDNP Series
Image Preview
