CDRH3D16NP
Fixed and shielded power inductors for various uses
Manufacturer： sumida-corporation
series introduction
The CDRH3D16NP Series is a premium range of surface-mount power inductors that cater to diverse applications requiring high efficiency and reliability in compact designs. Engineered for optimal performance, these inductors are characterized by their low DC resistance and high current ratings, making them an ideal choice for applications in DC-DC converters, voltage regulators, and power management systems.
One of the standout features of the CDRH3D16NP Series is its robust construction, which utilizes a ferrite core to minimize energy loss and enhance magnetic efficiency. This design characteristic not only contributes to improved thermal management but also allows for higher inductance values within a compact footprint, measuring just 3.2 mm x 3.2 mm x 1.6 mm. The series is available in various inductance values, which provides flexibility for designers to select the most suitable option for their specific application needs.
The CDRH3D16NP Series excels in high-frequency applications, making it particularly effective in powering devices in telecom, automotive, and consumer electronics sectors. Its ability to handle substantial ripple current without saturating ensures stable operation in demanding environments, such as those found in electric vehicles and renewable energy systems. Furthermore, these inductors are designed to operate effectively across a wide temperature range, enhancing their suitability for industrial applications where reliability is paramount.
Suitable for use in a variety of applications, the CDRH3D16NP Series power inductors are particularly advantageous in low-voltage applications including laptops, tablets, and smartphones, where maintaining efficiency while minimizing board space is critical. Additionally, these inductors find their place in power supply modules and other electronic circuits that require stable and efficient power delivery.
In summary, the CDRH3D16NP Series stands out for its low profile, excellent electrical characteristics, and versatile applications, making it a preferred choice for engineers seeking reliable inductive solutions in space-constrained and high-performance designs.
Images for reference

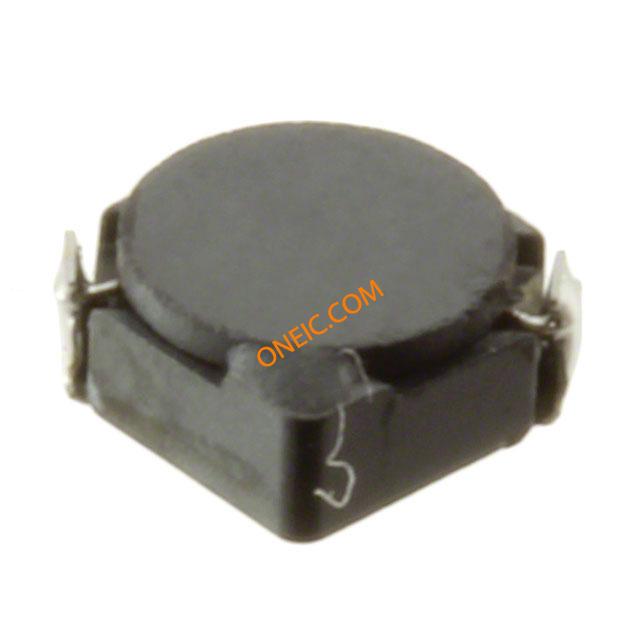

CDRH3D16NP-Series
Image Preview
