CC1206KKX5R8BB106
Surface-mount ceramic capacitors for compact electronic circuits
Manufacturer： yageo
series introduction
# Introduction to the CC1206KKX5R8BB106 Product Series
## 1. Overview
The CC1206KKX5R8BB106 belongs to a specialized series of electronic components, specifically ceramic capacitors. These capacitors play a crucial role in a wide range of electronic circuits, providing essential functions such as energy storage, filtering, coupling, and decoupling. The "CC" in the product code likely represents the manufacturer's brand or a specific product family identifier, while the "1206" refers to the industry - standard package size, which is widely used in surface - mount technology (SMT) applications.
## 2. Package Size (1206)
The 1206 package is a well - established and commonly used size in the electronics industry. It has a length of 3.2 mm and a width of 1.6 mm. This size offers a good balance between physical space requirements and electrical performance. It is large enough to handle a reasonable amount of current and capacitance values while still being suitable for use in relatively compact circuit boards. The standardized dimensions ensure compatibility with automated pick - and - place machines during the manufacturing process, which helps in mass - production and reduces assembly costs.
## 3. Dielectric Material (X5R)
The "X5R" indicates the dielectric material used in the capacitor. X5R is a Class II dielectric, which is known for its relatively high capacitance values and good temperature stability within a certain temperature range.
- **Temperature Range**: The "X" in X5R means that the capacitor can operate in a temperature range from - 55°C to + 85°C. This wide temperature range makes it suitable for use in various environments, including industrial, automotive, and consumer electronics applications where the operating temperature can vary significantly.
- **Capacitance Stability**: The capacitance of an X5R capacitor changes by no more than ± 15% over its specified temperature range. This stability is important in applications where consistent electrical performance is required, such as in power supply filtering circuits where fluctuations in capacitance can lead to changes in the output voltage ripple.
## 4. Capacitance Value (106)
The code "106" represents the capacitance value of the capacitor. In the capacitor coding system, the first two digits (10) are the significant figures, and the third digit (6) is the multiplier. So, the capacitance value is calculated as \(10\times10^{6}\) picofarads (pF), which is equivalent to 10 microfarads (\(\mu F\)). A capacitance of 10 \(\mu F\) is relatively large for a ceramic capacitor and is useful in applications that require significant energy storage or filtering capabilities, such as in power supply decoupling to smooth out voltage fluctuations.
## 5. Voltage Rating and Other Parameters
- **Voltage Rating**: Although not explicitly mentioned in the product code, these capacitors typically come with a specific voltage rating. The voltage rating indicates the maximum voltage that the capacitor can safely withstand without experiencing breakdown or other electrical failures. Common voltage ratings for this type of capacitor might range from a few volts to several tens of volts, depending on the specific application requirements.
- **Tolerance**: The capacitor also has a tolerance value, which indicates the allowable deviation from the nominal capacitance value. For example, a common tolerance for X5R capacitors is ± 20%. This means that the actual capacitance of a CC1206KKX5R8BB106 capacitor could be anywhere between 8 \(\mu F\) and 12 \(\mu F\).
## 6. Applications
- **Power Supply Filtering**: In power supply circuits, the 10 \(\mu F\
Images for reference

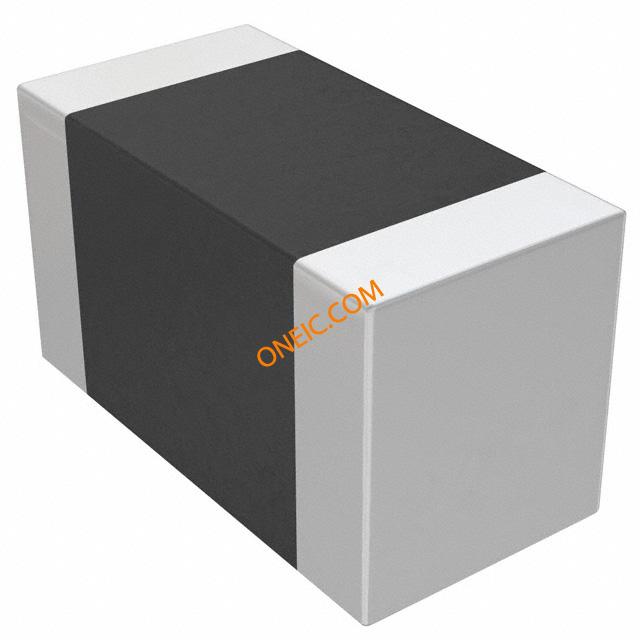

1206(1^80mm thickness)
