CC1110-CC1111DK
RF transceiver development kits for CC1110 and CC1111 evaluation
Manufacturer： ti
series introduction
# Introduction to the CC1110 - CC1111DK Product Series
## 1. Overview
The CC1110 - CC1111DK product series is a highly versatile and powerful development kit designed to facilitate the rapid prototyping and development of wireless applications. This series is based on the CC1110 and CC1111 microcontrollers from Texas Instruments, which are well - known for their excellent performance in the field of low - power wireless communication.
## 2. Key Components
### 2.1 CC1110 and CC1111 Microcontrollers
- **CC1110**:
- It is a true system - on - chip (SoC) solution that integrates an 8051 - based microcontroller core with a high - performance RF transceiver. The 8051 core provides a familiar and widely used programming environment, allowing developers with existing 8051 knowledge to quickly get started.
- The RF transceiver operates in the sub - 1 GHz frequency bands, including 315 MHz, 433 MHz, 868 MHz, and 915 MHz. This wide range of frequency options makes it suitable for various regional and application - specific requirements.
- It offers low - power consumption modes, such as idle and power - down modes, which are crucial for battery - powered applications. This helps in extending the battery life of the end - products.
- **CC1111**:
- Similar to the CC1110, the CC1111 also features an 8051 - based microcontroller core and an RF transceiver. However, it has additional features such as an integrated analog - to - digital converter (ADC).
- The ADC allows for easy interfacing with analog sensors, enabling the development of applications that require the measurement of physical quantities such as temperature, humidity, and pressure.
### 2.2 Development Board
The CC1110 - CC1111DK comes with a well - designed development board that provides all the necessary interfaces and components for easy development.
- **Power Supply**: It supports multiple power supply options, including battery power and external power sources. This flexibility allows developers to test the device under different power conditions.
- **Debugging Interface**: The board is equipped with a built - in debug interface, which simplifies the debugging process. Developers can use tools like the SmartRF Studio to configure the RF transceiver and the microcontroller, and also to perform in - circuit debugging.
- **Expansion Headers**: There are expansion headers on the board that provide access to the microcontroller's GPIO pins, serial communication interfaces (UART, SPI, I2C), and other important signals. This enables developers to connect external sensors, actuators, and other peripherals to the development board.
## 3. Features
### 3.1 Low - Power Operation
The CC1110 - CC1111DK is designed with low - power consumption in mind. The microcontrollers have multiple low - power modes that can be easily configured. For example, in power - down mode, the power consumption is extremely low, which is ideal for applications where the device is in standby for long periods of time. This makes it suitable for applications such as wireless sensor networks, where battery life is a critical factor.
### 3.2 High - Performance RF Communication
The RF transceiver in the CC1110 and CC1111 microcontrollers offers high - performance communication capabilities. It has a high sensitivity, which allows for long - range communication, and a high data rate, which enables fast data transfer. The transceiver also supports various modulation schemes, such as (G)FSK, OOK, and MSK, providing flexibility for different application

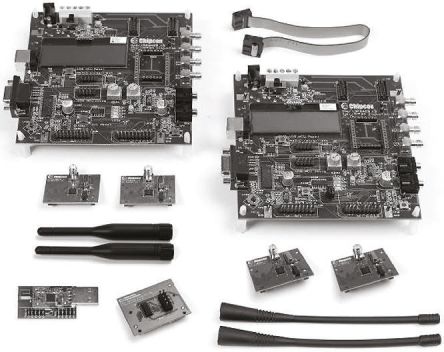

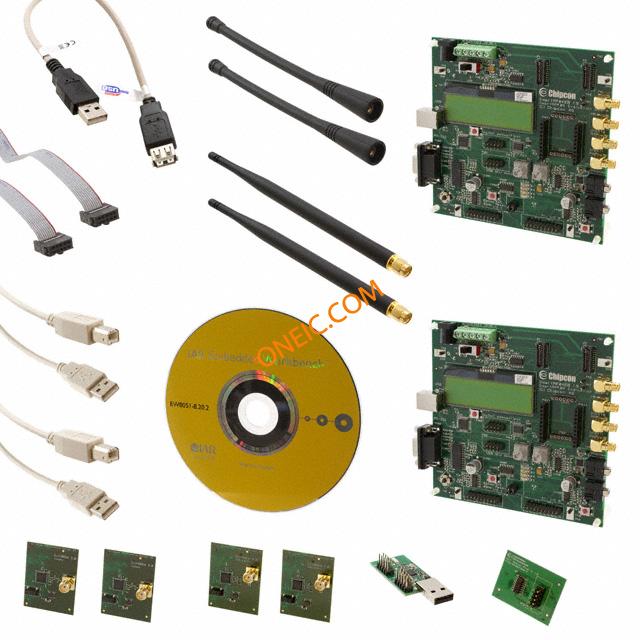

Images for reference
