C8051F583-IQ
High-performance 8-bit microcontrollers with 128KB flash memory
Manufacturer： silicon-laboratories
series introduction
# Introduction to the C8051F583 - IQ Product Series
## 1. Overview
The C8051F583 - IQ product series represents a cutting - edge line of microcontrollers developed to meet the diverse and demanding requirements of modern embedded systems. These microcontrollers are built on a foundation of advanced technology, offering a combination of high - performance computing, rich peripheral features, and low power consumption, making them suitable for a wide range of applications across multiple industries.
## 2. Core Architecture
### 2.1 CPU
At the heart of the C8051F583 - IQ series is a high - speed 8051 - compatible CPU core. This core has been enhanced to provide significantly improved performance compared to traditional 8051 architectures. It can execute instructions at a high clock rate, enabling rapid data processing and efficient execution of complex algorithms. The enhanced instruction set allows for more streamlined programming, reducing code size and improving overall system efficiency.
### 2.2 Memory
- **Flash Memory**: The microcontrollers in this series are equipped with a generous amount of on - chip flash memory. This non - volatile memory is used to store the program code, allowing for easy reprogramming and updates. The large flash memory capacity enables the implementation of complex applications, including those with extensive user interfaces, data logging, and communication protocols.
- **RAM**: A sufficient amount of on - chip RAM is provided to support real - time data processing. The RAM serves as a workspace for variables, buffers, and intermediate results during program execution. This ensures smooth operation even when dealing with large amounts of data, such as in sensor data acquisition and signal processing applications.
## 3. Peripheral Features
### 3.1 Analog Peripherals
- **Analog - to - Digital Converters (ADCs)**: The C8051F583 - IQ series features high - resolution ADCs. These ADCs can accurately convert analog signals from various sensors, such as temperature sensors, pressure sensors, and light sensors, into digital values. The high resolution ensures precise measurement of analog quantities, which is crucial in applications where accurate data acquisition is required, such as industrial automation and environmental monitoring.
- **Digital - to - Analog Converters (DACs)**: On - chip DACs are available to generate analog output signals. This is useful in applications such as audio signal generation, motor control, and power supply regulation, where analog signals need to be produced based on digital control values.
### 3.2 Communication Peripherals
- **UART (Universal Asynchronous Receiver - Transmitter)**: The UART interface allows for asynchronous serial communication with other devices, such as computers, sensors, and actuators. It supports a wide range of baud rates, making it compatible with different communication standards. This interface is commonly used for data transfer between the microcontroller and external devices, enabling remote monitoring and control.
- **SPI (Serial Peripheral Interface)**: The SPI interface provides a high - speed synchronous serial communication option. It is often used to communicate with external memory devices, display modules, and other high - speed peripherals. The SPI interface allows for fast data transfer, reducing the overall communication time and improving system performance.
- **I²C (Inter - Integrated Circuit)**: The I²C interface is a widely used serial communication protocol for connecting multiple devices on a single bus. It is suitable for communicating with low - speed devices, such as EEPROMs, sensors, and real - time clocks. The I²C interface simplifies the hardware design by reducing the number of communication lines required.
### 3.3 Timers and Counters
The microcontrollers in the C8051F583 - IQ series are equipped with multiple timers and counters. These timers can
Images for reference

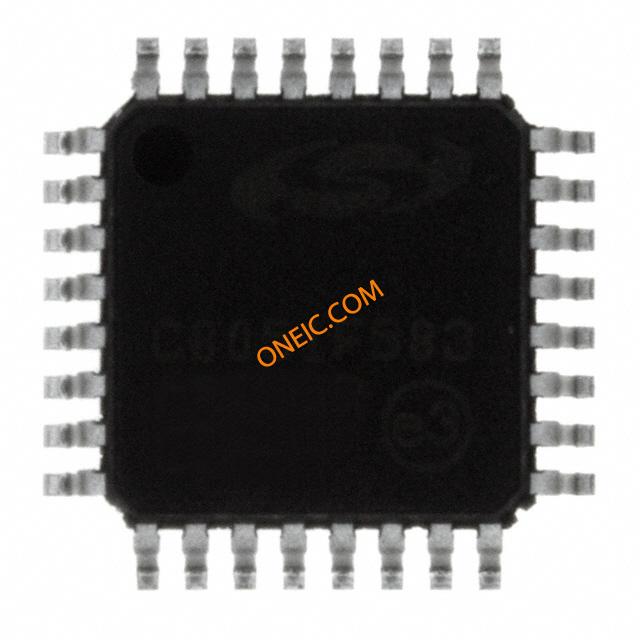

c8051f583-iq
