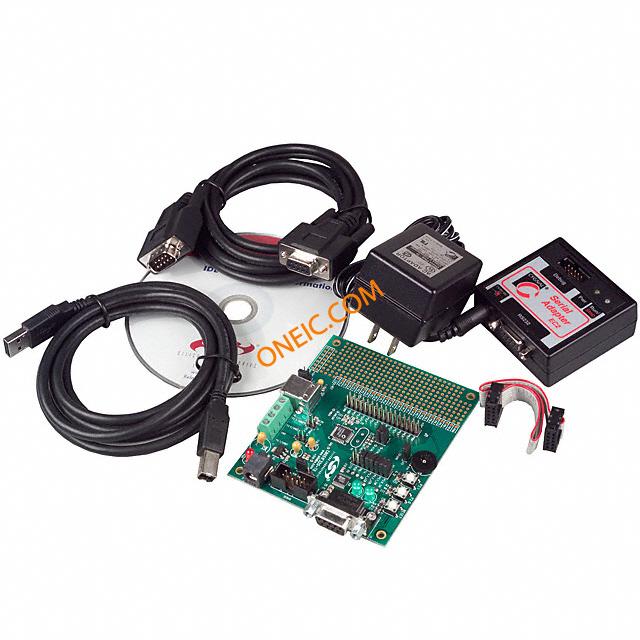

C8051F320DK

Development kit for 8-bit 8051 MCU with USB and software tools

Manufacturer: silicon-laboratories

series introduction

# Introduction to the C8051F320DK Product Series

## 1. Overview
The C8051F320DK is a highly versatile and feature - rich development kit that belongs to the C8051F320 product series. This series is designed to provide engineers, hobbyists, and students with a comprehensive platform for developing and prototyping embedded systems. Based on the powerful C8051 microcontroller architecture, it offers a wide range of capabilities that make it suitable for various applications, from simple consumer electronics to complex industrial control systems.

## 2. Key Components

### Microcontroller
- **C8051F320 Microcontroller Core**: At the heart of the C8051F320DK is the C8051F320 microcontroller. It is a high - performance 8 - bit microcontroller with a pipelined CIP - 51 core that can execute instructions in one or two clock cycles. This results in a significant improvement in processing speed compared to traditional 8051 - based microcontrollers.
- **Memory**: The microcontroller comes with 64KB of in - system programmable Flash memory, which allows for easy code updates and storage of application programs. It also has 4KB of on - chip data RAM, providing sufficient space for data storage and manipulation during program execution.

### Peripherals
- **Analog - to - Digital Converter (ADC)**: The C8051F320 features a 10 - bit, 200 ksps (kilo - samples per second) ADC. This ADC can be used to convert analog signals from sensors such as temperature sensors, light sensors, and pressure sensors into digital values that can be processed by the microcontroller. It has multiple input channels, enabling the simultaneous measurement of different analog signals.
- **Digital - to - Analog Converter (DAC)**: A 10 - bit DAC is also integrated into the microcontroller. It can be used to generate analog output signals, which is useful for applications such as audio signal generation, motor control, and voltage regulation.
- **Timers/Counters**: There are several timers and counters available in the C8051F320. These can be used for a variety of purposes, including generating time delays, measuring time intervals, and generating pulse - width modulation (PWM) signals for motor control or LED dimming.
- **Serial Communication Interfaces**: The microcontroller supports multiple serial communication interfaces, including UART (Universal Asynchronous Receiver - Transmitter), SPI (Serial Peripheral Interface), and SMBus (System Management Bus). These interfaces allow the C8051F320 to communicate with other devices such as sensors, displays, and other microcontrollers.

## 3. Development Kit Features

### Hardware
- **On - board Debugging and Programming**: The C8051F320DK comes with an on - board JTAG (Joint Test Action Group) and C2 interface for debugging and programming the microcontroller. This eliminates the need for an external programmer, making the development process more convenient and cost - effective.
- **Expansion Headers**: The development kit is equipped with expansion headers that provide access to all the I/O pins of the microcontroller. This allows users to easily connect external components such as sensors, actuators, and displays to the microcontroller, enabling the development of custom - made applications.
- **Power Supply Options**: The C8051F320DK can be powered by either an external power supply or through the USB port. This flexibility makes it suitable for different development environments and applications.

### Software
- **Integrated Development Environment (IDE)**: The C8051F320
