C0805C104K3
0.1uF 25V X7R MLCC capacitors for electronics
Manufacturer： kemet
series introduction
The C0805C104K3 Series is an advanced line of surface-mount multilayer ceramic capacitors (MLCCs) that combines exceptional performance with a compact footprint, making it ideal for a wide range of electronic applications. With a capacitance value of 100nF and a voltage rating of 16V, these capacitors are designed to meet the demands of both consumer electronics and industrial systems that require reliable and efficient power management solutions.
A key feature of the C0805C104K3 Series is its use of C0G (NP0) dielectric material, which provides outstanding temperature stability and voltage characteristics. This dielectric ensures that the capacitance remains constant over a wide temperature range, from -55°C to +125°C, and offers a capacitance tolerance of ±10%. Consequently, these capacitors are particularly well-suited for timing and filtering applications in high-frequency circuits, where precision and stability are paramount.
The compact 0805 package size (2.0 mm x 1.25 mm) of the C0805C104K3 Series contributes to its versatility in various applications. This small footprint allows designers to optimize board space, making it an excellent choice for densely populated circuit boards found in mobile devices, IoT gadgets, and automotive electronics. Furthermore, the series is capable of withstanding harsh environmental conditions, making it suitable for industrial applications where reliability is crucial.
In terms of typical applications, the C0805C104K3 capacitors excel in decoupling and bypassing roles, ensuring stable voltage levels and preventing signal distortion in high-speed digital circuits. They are also commonly used in RF applications, filtering circuits, and power supply systems, where their superior performance characteristics contribute to the overall efficiency and reliability of the device.
Overall, the C0805C104K3 Series stands out as a robust solution for engineers seeking high-quality capacitors that deliver reliable performance in compact designs, meeting the rigorous demands of modern electronic applications across diverse industries.
Images for reference

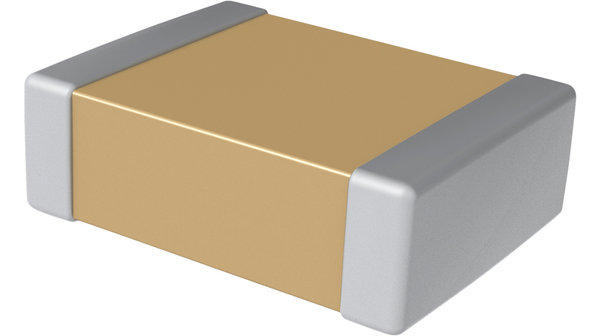

0805 MLCC Caps
