C0805C104K1
SMD/SMT multilayer ceramic capacitors, 0.1uF 100V X7R
Manufacturer： ['kemet', 'meggitt']
series introduction
The C0805C104K1 Series is a distinguished line of surface-mount multilayer ceramic capacitors (MLCCs) designed to meet the stringent requirements of modern electronic applications. With a compact 0805 package size (2.0 mm x 1.25 mm), this series exemplifies efficiency in design while delivering exceptional performance characteristics. The capacitors within this series utilize C0G (NP0) dielectric material, which ensures excellent temperature stability and a capacitance value of 100,000 pF (100 nF) with a voltage rating of 50V. This combination makes them ideal for applications requiring precision and reliability in varying environmental conditions.
One of the key features of the C0805C104K1 Series is its outstanding capacitance stability across a wide temperature range, from -55°C to +125°C, with minimal voltage coefficient effects. This stability ensures that the capacitors maintain their performance under fluctuating operational conditions, making them suitable for critical applications such as decoupling, filtering, and timing circuits in high-frequency systems. Additionally, the low equivalent series resistance (ESR) and equivalent series inductance (ESL) of these capacitors contribute to their effectiveness in reducing noise and enhancing signal integrity in high-speed digital circuits.
The design of the C0805C104K1 Series offers versatility across various sectors, including consumer electronics, telecommunications, automotive, and industrial applications. Their compact form factor is particularly advantageous in space-constrained environments, such as smartphones, tablets, and wearables, where maximizing board space without compromising performance is essential. Furthermore, these capacitors are frequently employed in power management circuits, RF applications, and audio equipment, where high-frequency performance and reliability are paramount.
In summary, the C0805C104K1 Series stands out as a robust solution for engineers seeking reliable, high-performance capacitors in compact packages. With their advanced design characteristics and broad range of applications, these capacitors are set to meet the demands of contemporary electronic designs, ensuring stability and performance in an ever-evolving technological landscape.
Images for reference

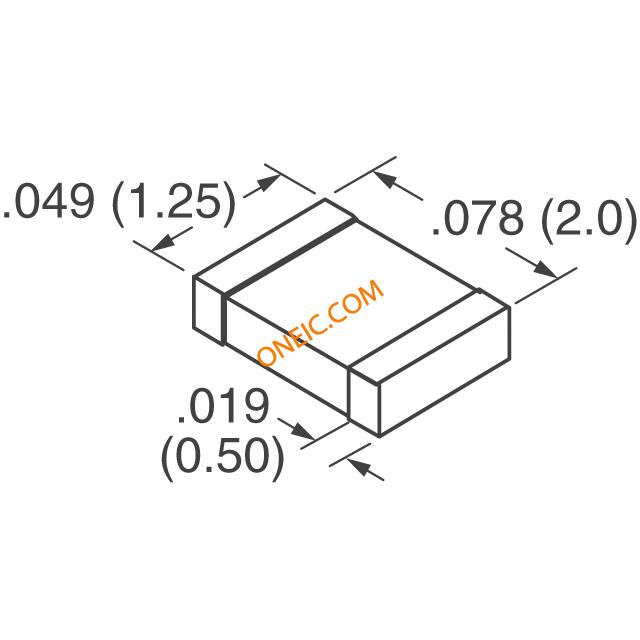

0805 MLCC Caps
ACTU_0805
