BZX884-C4
Zener diodes in SOD-882 for various voltages
Manufacturer： ['nxp', 'nexperia']
series introduction
The BZX884-C4 Series is a comprehensive range of low-power Zener diodes designed to provide reliable voltage regulation in a variety of electronic applications. Renowned for their precision and stability, these diodes are specifically engineered to maintain a constant output voltage over a range of current conditions, making them ideal for voltage clamping and reference applications. The BZX884-C4 series features a wide selection of reverse breakdown voltages, typically ranging from 2.4V to 75V, allowing engineers to select the optimal component for their specific circuit requirements.
One of the key features of the BZX884-C4 Series is its low dynamic impedance, which significantly enhances its performance in voltage regulation applications. This characteristic ensures minimal voltage fluctuations under varying load conditions, thus providing stable operation for sensitive electronic devices. The diodes also exhibit excellent temperature stability, with a temperature coefficient of approximately -2.0 mV/°C. This attribute is particularly beneficial in environments where temperature variations can affect circuit functionality, ensuring that the output voltage remains consistent even under fluctuating thermal conditions.
The design of the BZX884-C4 Series incorporates a robust, glass passivated package, which enhances reliability and performance by protecting the semiconductor material from external environmental factors. The planar design also allows for efficient heat dissipation, further ensuring stable operation during extensive use. Their small footprint makes them suitable for integration into compact electronic designs, such as in portable devices, consumer electronics, and telecommunications equipment.
In terms of applications, the BZX884-C4 Series is widely used in power supply circuits, voltage regulation for microcontrollers, and signal conditioning in various industrial and consumer devices. They are particularly effective in providing over-voltage protection, battery management systems, and as reference elements in precision analog circuits. With their combination of excellent thermal stability, low dynamic resistance, and versatility, the BZX884-C4 Series diodes continue to serve as a dependable choice for engineers seeking optimal performance in their electronic designs.
Images for reference

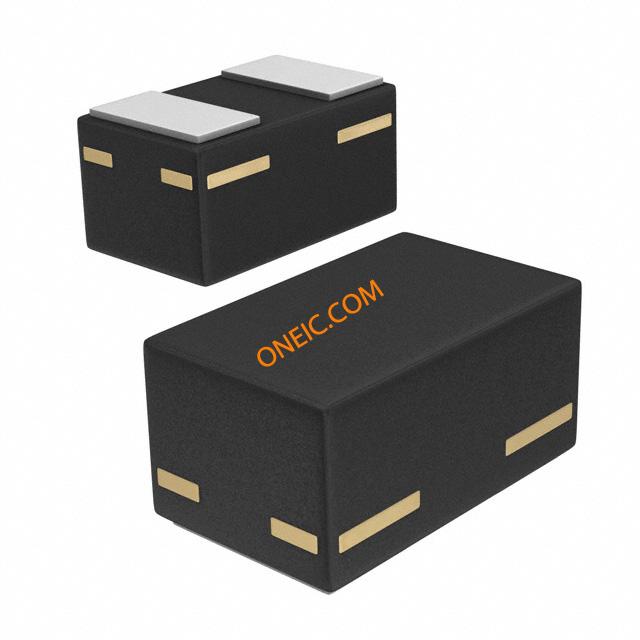

SOD-882

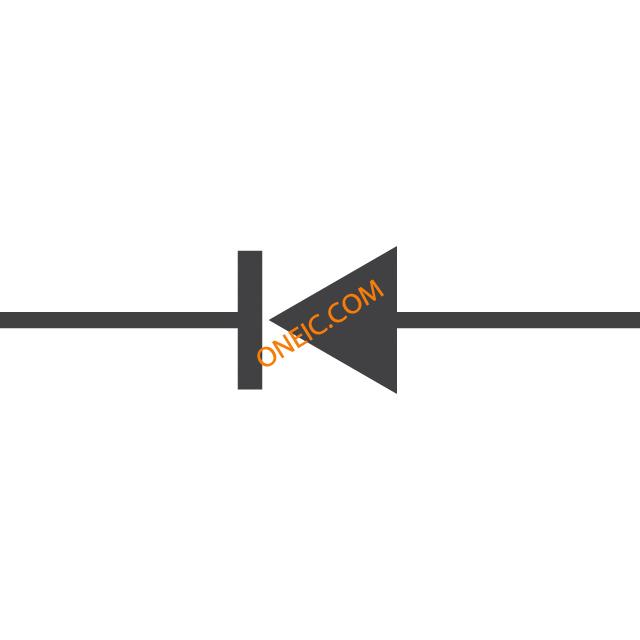

Regulator SOD-882 Circuit
