BZX85C51
51V Zener diodes in DO-41 package
Manufacturer： ['taiwan-semiconductor', 'magnatec', 'freescale', 'vishay', 'onsemi', 'fairchild', 'rochester']
series introduction
The BZX85C51 Series is a range of Zener diodes designed to provide precise voltage regulation in a variety of electronic applications. Renowned for their reliability and performance, these diodes feature a low reverse voltage coefficient and a wide range of breakdown voltages, making them an ideal choice for applications requiring stable voltage reference and protection against over-voltage conditions.
One of the key features of the BZX85C51 Series is its ability to maintain a constant Zener voltage across a wide current range, thanks to its robust design and efficient thermal performance. With a power dissipation capability of up to 500 mW, these diodes can handle significant thermal loads while ensuring optimal operation in high-temperature environments. The series is available in a compact DO-41 package, which not only saves board space but also facilitates efficient heat dissipation, making it suitable for integration into densely populated circuit boards.
The BZX85C51 Series is particularly well-suited for use in voltage regulation circuits, providing a stable reference voltage for a wide range of electronic devices. Typical applications include power supplies, voltage clamping, and surge protection circuits. These Zener diodes are also widely used in consumer electronics, automotive systems, and telecommunications equipment, where they serve as vital components in safeguarding sensitive electronic parts from voltage spikes.
Moreover, the BZX85C51 Series features excellent temperature stability and precision, ensuring that the output voltage remains consistent despite fluctuations in temperature or input voltage. This characteristic is crucial for applications where reliable performance is paramount, such as in precision measurement equipment and industrial control systems.
In summary, the BZX85C51 Series stands out for its combination of reliable voltage regulation, compact design, and versatility, making it an essential component for engineers and designers looking to enhance the performance and safety of their electronic products.
Images for reference

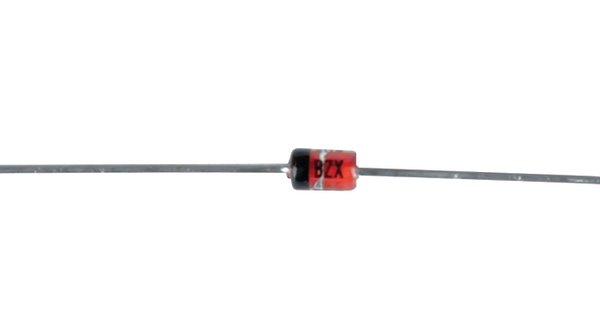

DO-41
DO-204AL, Axial (DO-41) Bidirectional
Image Preview
