BZX84-B24
24V Zener diodes in SOT-23/TO-236AB packages
Manufacturer： ['nxp', 'nexperia']
series introduction
The BZX84-B24 Series is a comprehensive line of Zener diodes designed to deliver precise voltage regulation and reliable performance in a variety of electronic applications. Renowned for their stability and low noise characteristics, these diodes are engineered to operate efficiently in circuits requiring voltage clamping or regulation. The series features a breakdown voltage range of 3.3V to 75V, providing flexibility for designers to choose the appropriate Zener voltage to meet their specific circuit needs.
Constructed with a robust silicon material, the BZX84-B24 Series showcases excellent thermal stability and reliability across a broad temperature range, from -55°C to +150°C. This ensures that the diodes maintain their performance even under extreme environmental conditions. The package is optimized for surface-mount technology, allowing for easy integration into compact circuit designs, making them ideal for high-density applications.
One of the key features of the BZX84-B24 Series is its low dynamic resistance, which results in minimal voltage variation during operation. This characteristic is crucial for applications where stable voltage references are required, such as in power supplies, voltage regulation circuits, and transient voltage suppression. The series is also ideal for use in consumer electronics, automotive electronics, and industrial automation systems, where reliable performance is paramount.
Typical applications include voltage regulation in power management circuits, reference voltage sources for analog circuits, and over-voltage protection in sensitive electronic devices. The BZX84-B24 Series is particularly well-suited for use in LED drivers, battery chargers, and signal processing equipment, where accurate voltage control is essential for optimal performance.
In summary, the BZX84-B24 Series offers an effective solution for designers seeking dependable voltage regulation and protection in their electronic systems. With its combination of robust design, versatility, and high performance, this series stands out as a reliable choice for a wide range of electronic applications.
Images for reference

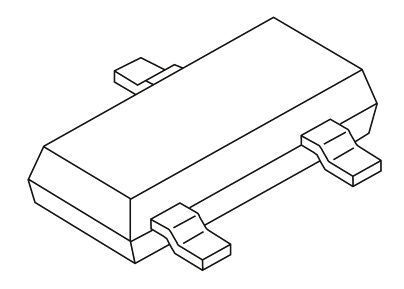

SOT-23-3
